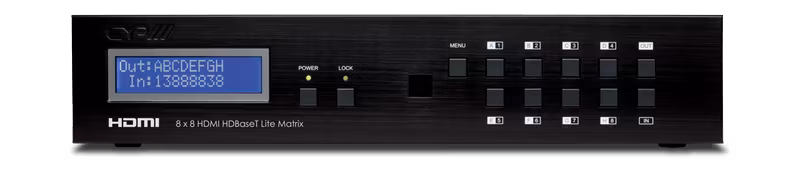

PU-8H8HBTPL-4K22-KIT
PU-8H8HBTPL-4K22-KIT är ett komplett paket som förutom matrisväxeln även inkluderar 8 st PU-515PL-RX mottagare.
Ett utmärkt paket för en restaurang/sportbar som vill kunna köra 4K UHD (4:2:0) och har många källor men inte så många bildskärmar.
The 4K2K 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD, HDCP 2.2), multi-channel digital audio from 8 HDMI sources to 8 HDBaseT LITE outputs via single CAT5e/6/7 cable up to 60m. The matrix is compatible with high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source.
This matrix features control via manual selection buttons, IR, RS-232, Telnet or Web GUI. CYP provide control drivers for all the major control systems. This unit also supports UART RS232 pass-through to the receivers.
The PU-8H8HBTPL-4K22 is designed to be used with PU-515PL-RX & PU-515PL-WPRX receivers.
HDCP 2.2 Compliant
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Uncompressed video/audio up to 10.2Gbps
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 40m via CAT6a/7
1080p signals can be transmitted up to 60m via CAT5e/6/6a/7
PoC (Power over Cable) feature available on compatible receivers only
Features bi-directional IR from input and output locations
The PU-8H8HBTPL-4K22 can be controlled via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
2U Size Design
Supports external and internal EDID settings
This matrix features control via manual selection buttons, IR, RS-232, Telnet or Web GUI. CYP provide control drivers for all the major control systems. This unit also supports UART RS232 pass-through to the receivers.
The PU-8H8HBTPL-4K22 is designed to be used with PU-515PL-RX & PU-515PL-WPRX receivers.
Feature:
HDCP 2.2 Compliant
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Uncompressed video/audio up to 10.2Gbps
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 40m via CAT6a/7
1080p signals can be transmitted up to 60m via CAT5e/6/6a/7
PoC (Power over Cable) feature available on compatible receivers only
Features bi-directional IR from input and output locations
The PU-8H8HBTPL-4K22 can be controlled via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
2U Size Design
Supports external and internal EDID settings
Specifications:

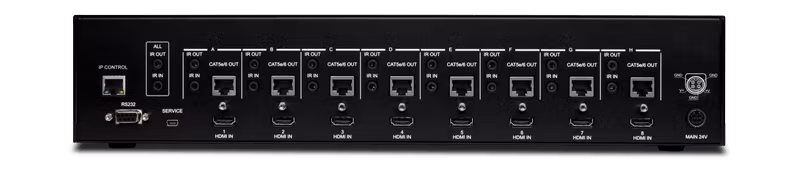

| Input: | 8x HDMI [8x Uncompressed AV and Data] 9x 3.5mm Stereo mini-jack [9x Infra Red Receiver] 1x RJ45 [1x IP Control] 1x 9pin Dsub [1x RS-232 Data] 1x USB Mini B [1x Service Port Propriety Data] |
| Output: | 9x 3.5mm Stereo mini-jack [9x Infra Red Emitter] 8x RJ45 [8x HDBaseT Lite HDMI & Propriety Data] |
| | |
| PoE PSU | 24V/6.25A |
| PSU: | 24V/6.25A |
| Dimensions: | 438mm [W] x 249mm [D] x 88mm [H] |
| Net. Weight: | 4370g |
| Gross Weight: | 5670g |
