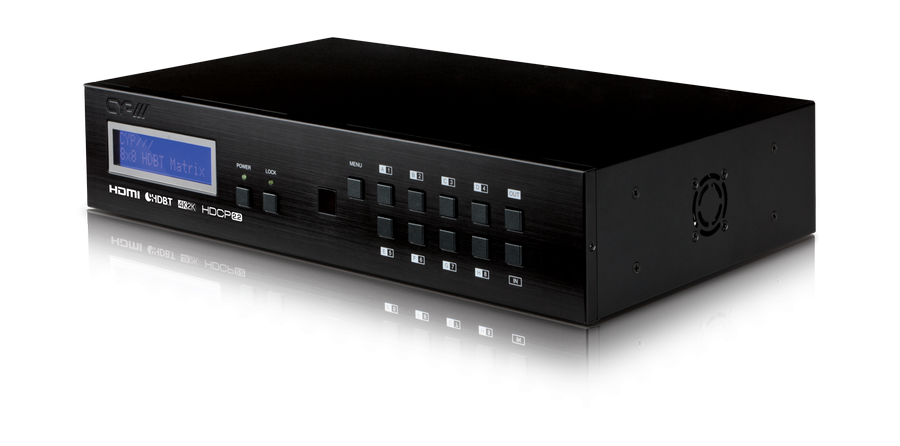

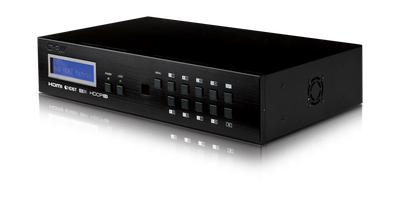

PU-8H8HBTPL-4K22
CYP/// PU-8H8HBTPL-4K22 är det självklara valet i ett fullfjädrat multiroom-system baserat på HDMI om man vill ha 4K och HDCP 2.2 stöd. Den är HDBaseT Lite vilket innebär att den hamnar i ett attraktivt prisläge, men klarar ändå 60 meters räckvidd i en vanlig Cat6-kabel.
8 HDMI in och 8 HDBaseT Lite ut gör att du klarar även en större bostad, 8 rum räcker i de flesta fall.
En annan fördel med denna matrisen är att den levererar Power over Cable ( PoC ) vilket innebär att man inte behöver strömförsörja mottagarna utan allt detta sköts genom matrisen.

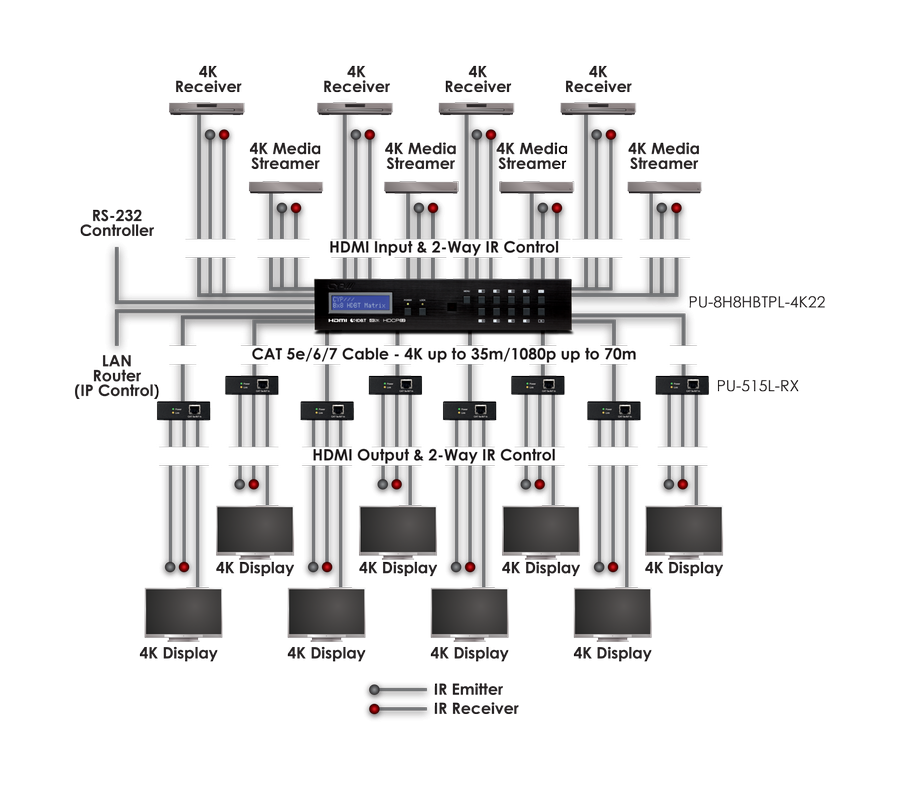

The 4K2K 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD, HDCP 2.2), multi-channel digital audio from 8 HDMI sources to 8 HDBaseT LITE outputs via single CAT5e/6/7 cable up to 60m. The matrix is compatible with high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source.

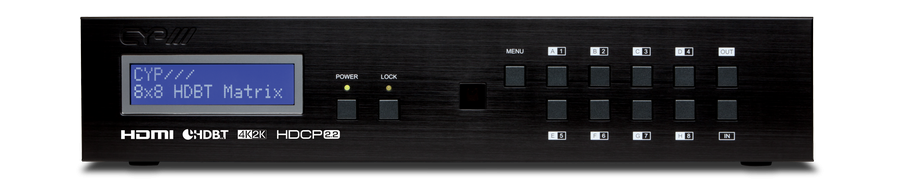

This matrix features control via manual selection buttons, IR, RS-232, Telnet or Web GUI. CYP provide control drivers for all the major control systems. This unit also supports UART RS232 pass-through to the receivers.
The PU-8H8HBTPL-4K22 is designed to be used with PU-515PL-RX & PU-515PL-WPRX receivers.
HDCP 2.2 Compliant
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Uncompressed video/audio up to 10.2Gbps
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
1080p including 3D can be transmitted up to 60 meters and 4K UHD signals up to 40m via CAT6a/7
PoC (Power over Cable) feature available on compatible receivers only
Features bi-directional IR from input and output locations
The PU-8H8HBTPL-4K22 can be controlled via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
2U Size Design
Supports external and internal EDID settings

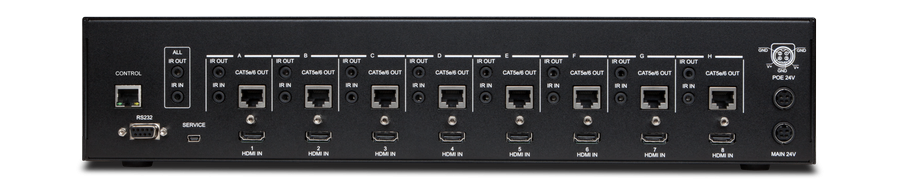

Inputs:
8x HDMI [8x Uncompressed AV and Data]
9x 3.5mm Stereo mini-jack [9x Infra Red Receiver]
1x RJ45 [1x IP Control]
1x 9pin Dsub [1x RS-232 Data]
1x USB Mini B [1x Service Port Propriety Data]
Outputs:
9x 3.5mm Stereo mini-jack [9x Infra Red Emitter]
8x RJ45 [8x HDBaseT Lite HDMI & Propriety Data]
POE PSU: 24V/6.25A
PSU: 24V/6.25A
Dimensions: 438mm [W] x 249mm [D] x 88mm [H]
Net Weight: 4370g
Gross Weight:5670g
This matrix features control via manual selection buttons, IR, RS-232, Telnet or Web GUI. CYP provide control drivers for all the major control systems. This unit also supports UART RS232 pass-through to the receivers.
The PU-8H8HBTPL-4K22 is designed to be used with PU-515PL-RX & PU-515PL-WPRX receivers.
Feature:
HDCP 2.2 Compliant
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Uncompressed video/audio up to 10.2Gbps
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
1080p including 3D can be transmitted up to 60 meters and 4K UHD signals up to 40m via CAT6a/7
PoC (Power over Cable) feature available on compatible receivers only
Features bi-directional IR from input and output locations
The PU-8H8HBTPL-4K22 can be controlled via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
2U Size Design
Supports external and internal EDID settings
Specification:
Inputs:
8x HDMI [8x Uncompressed AV and Data]
9x 3.5mm Stereo mini-jack [9x Infra Red Receiver]
1x RJ45 [1x IP Control]
1x 9pin Dsub [1x RS-232 Data]
1x USB Mini B [1x Service Port Propriety Data]
Outputs:
9x 3.5mm Stereo mini-jack [9x Infra Red Emitter]
8x RJ45 [8x HDBaseT Lite HDMI & Propriety Data]
POE PSU: 24V/6.25A
PSU: 24V/6.25A
Dimensions: 438mm [W] x 249mm [D] x 88mm [H]
Net Weight: 4370g
Gross Weight:5670g
