500469-PoE-EU
Här har vi en HDMI matris med 8 ingångar och 8 HDBT utgångar som alla kan jobba simultant och individuellt från varandra.
Lämpliga mottagare är:
500451-RX HDMI Mono Extender Mottagare med HDBT, UHD-4K och IR, 70m
500454-RX HDMI / RS232 mottagare 70m
500454-PoE-RX HDMI / RS232 mottagare 70m med PoE

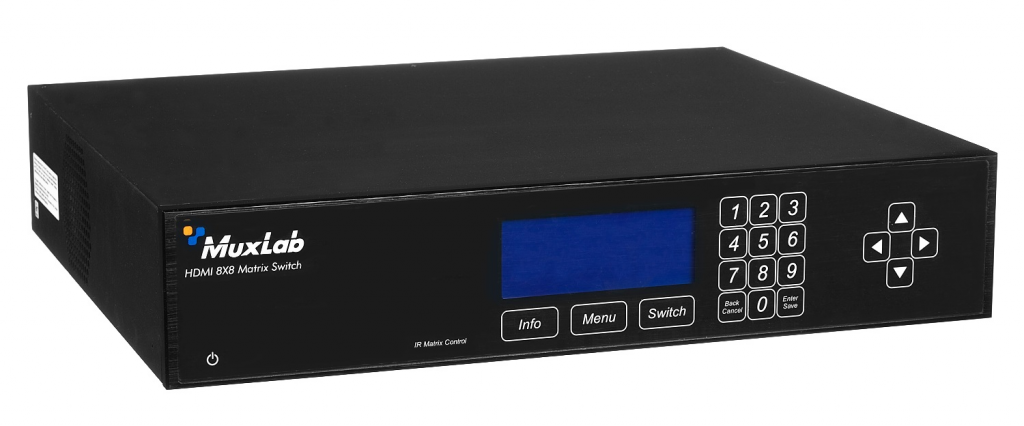

The MuxLab HDMI 8x8 Matrix Switch, HDBT, PoE allows 8 HDMI sources to be switched/distributed to up to 8 remote displays via unshielded twisted pair (UTP) or shielded twisted pair (STP) cables for cost-efficient connectivity.
Remote displays can be connected up to 230 feet (70 meters) @ 1080p Deep Color via Cat 5e/6 UTP/STP cables.
The Matrix Switch works in conjunction with MuxLab’s HDMI Receiver ( 500451-RX, 500454-RX or 500454-POE-RX )
Features
Single modular RJ45 jacks
HDMI 3D Support
HDMI input supported with resolution up to 1080p
Web interface
Firmware is field upgradable
Device control over HTTP protocol
UTP / STP extension for 1080p Deep Color up to 230 feet ( 70 meters ) via Cat 5e / 6 UTP / STP cables
Seamless integration with MuxLab's HDMI Receiver ( 500451-RX, 500454-RX or 500454-POE-RX ) Note: The 500451-RX doesn't support RS-232 and PoE functionality
HDBaseT supported output
Configurable EDID settings
RS232 and USB CDC control
Touch pad on front panel for manual control
2U rackmount unit
Remote displays can be connected up to 230 feet (70 meters) @ 1080p Deep Color via Cat 5e/6 UTP/STP cables.
The Matrix Switch works in conjunction with MuxLab’s HDMI Receiver ( 500451-RX, 500454-RX or 500454-POE-RX )
Features
Single modular RJ45 jacks
HDMI 3D Support
HDMI input supported with resolution up to 1080p
Web interface
Firmware is field upgradable
Device control over HTTP protocol
UTP / STP extension for 1080p Deep Color up to 230 feet ( 70 meters ) via Cat 5e / 6 UTP / STP cables
Seamless integration with MuxLab's HDMI Receiver ( 500451-RX, 500454-RX or 500454-POE-RX ) Note: The 500451-RX doesn't support RS-232 and PoE functionality
HDBaseT supported output
Configurable EDID settings
RS232 and USB CDC control
Touch pad on front panel for manual control
2U rackmount unit
