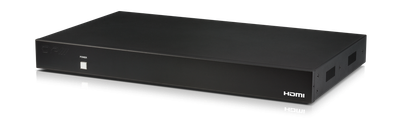

DS-MSC14
Utgående modell. Behöver ni stöd för 4K så är det DS-MSC14-4K22 ni letar efter.
DS-MSC14 står för Digital Signage Multi-Screen Controller.
Den används när man vill visa en bild över flera skärmar..
Ni har kanske sett en vägg med flera skärmar som visar en bild när ni varit på någon mässa.
Vid dessa tillfällen använder man sig oftast av en Multi-Screen Controller.
The 1 by 4 HDMI TV Wall controller allows an HDMI input source to be displayed, in full screen or single mode, on up to 4 HDMI displays (TV or monitor). Multiple units can be cascaded to extend the HDMI signal up to as many displays as needed. The unit features bezel correction function. A simple control application enables users to control single or multiple units. The device supports video timings up to WUXGA@60RB and 1080p@60Hz, audio format up to 7.1CH LPCM at 192kHz sampling rate based on input source EDID. Control can be achieved through software application, Telnet and RS-232.
HDMI, HDCP1.4 and DVI compliant
Output source signal to 4 displays (2 by 2 Video wall) as a full screen or single image with adjustable Bezel Correction
Cascade the HDMI signal up to as many as required
Software application allows one button push to control all connected TV Wall devices
Supports RS232 and Telnet controls
Input resolutions support VGA~WUXGA and 480i~1080p
Output resolutions support 720p~1080p
Supports different input resolution and output resolution selectable from OSD menu. The factory default output resolution is native to the connected screen.
Audio supports LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD

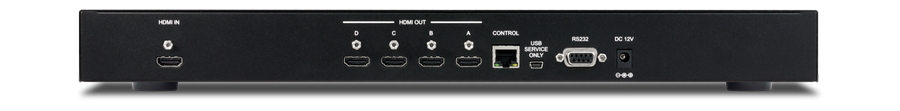

Inputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x IP Control]
1x USB Mini B [1x Service Port Propriety Data]
Outputs
4x HDMI [4x HDMI Uncompressed AV and Data]
Power: 12V / 3A
Dimensions: 436mm (W) x 256mm (D) x 49mm (H)
Gross Weight: 3815g
Net. Weight: 2815g
Features:
HDMI, HDCP1.4 and DVI compliant
Output source signal to 4 displays (2 by 2 Video wall) as a full screen or single image with adjustable Bezel Correction
Cascade the HDMI signal up to as many as required
Software application allows one button push to control all connected TV Wall devices
Supports RS232 and Telnet controls
Input resolutions support VGA~WUXGA and 480i~1080p
Output resolutions support 720p~1080p
Supports different input resolution and output resolution selectable from OSD menu. The factory default output resolution is native to the connected screen.
Audio supports LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD
Specification:
Inputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x IP Control]
1x USB Mini B [1x Service Port Propriety Data]
Outputs
4x HDMI [4x HDMI Uncompressed AV and Data]
Power: 12V / 3A
Dimensions: 436mm (W) x 256mm (D) x 49mm (H)
Gross Weight: 3815g
Net. Weight: 2815g
