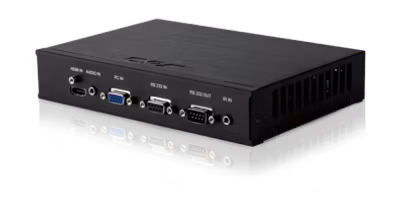

DS-MSC
DS-MSC står för Digital Signage Multi-Screen Controller. Vad har man en sådan till då?
Jo den används när man vill visa en bild över flera skärmar.
Ni har kanske sett en vägg med flera skärmar som visar en bild när ni varit på någon mässa eller liknande.
Vid dessa tillfällen har man använt sig av en Multi-Screen Controller så som denna.
Obs, man behöver en DS-MSC för varje bildskärm.
Plus en HDMI Splitter (ex CYP/// QU-14S HDMI splitter V1.3 )
om du bara har en HDMI källa.
The DS-MSC is designed to manage audio and video signals to emulate a video wall when using third-party screens. This controller will control the digital signage content for each screen on a video wall system using up to 25 screens. One controller is required per screen. If the user has only one HDMI or VGA source, then an appropriate Distribution Amplifier (Splitter) will be required to split the source signal to each of the Multi-Screen Controllers feeding the screens.
Supports many Horizontal and Vertical video wall screen combinations: 2x2(four screens), 3x2(six screens), 3x3(nine screens), 4x3(12 screens), 4x4(16 screens) and 5x5 (25 screens)
Supports both HDMI and PC (with audio) input sources
Resolution support up to full HD at 1080p
Simple RS-232 control via cascaded RS-232 cable between each video wall controller
Supports external IR receiver for IR remote control
Note: Requires HDMI or PC (with audio) signal splitter to distribute video / audio signal to each connected DS-MSC controller
Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
1x Stereo mini-jack [1x Analogue Stereo(L/R)]
1x 15pin Dsub [1x RGBHV]
1x 9pin Dsub [1x RS-232 Data]
1x Stereo mini-jack [1x Infra Red Receiver]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
2x RCA [1x Analogue Stereo (L/R)]
1x 9pin Dsub [1x RS-232 Data]
Power 5V/3A, DC (US/EU standards, CE/FCC/UL certified)
Dimensions 250mm (W) x 150mm (D) x 50mm (H)
Gross Weight 880g
Net. Weight 740g
Features
Supports many Horizontal and Vertical video wall screen combinations: 2x2(four screens), 3x2(six screens), 3x3(nine screens), 4x3(12 screens), 4x4(16 screens) and 5x5 (25 screens)
Supports both HDMI and PC (with audio) input sources
Resolution support up to full HD at 1080p
Simple RS-232 control via cascaded RS-232 cable between each video wall controller
Supports external IR receiver for IR remote control
Note: Requires HDMI or PC (with audio) signal splitter to distribute video / audio signal to each connected DS-MSC controller
Specification
Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
1x Stereo mini-jack [1x Analogue Stereo(L/R)]
1x 15pin Dsub [1x RGBHV]
1x 9pin Dsub [1x RS-232 Data]
1x Stereo mini-jack [1x Infra Red Receiver]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
2x RCA [1x Analogue Stereo (L/R)]
1x 9pin Dsub [1x RS-232 Data]
Power 5V/3A, DC (US/EU standards, CE/FCC/UL certified)
Dimensions 250mm (W) x 150mm (D) x 50mm (H)
Gross Weight 880g
Net. Weight 740g
OBS! Priset är Inkl. moms.
