CYP/// 1:7 HDMI till HDBaseT Splitter(100m)

32 650 kr



PU-1H7HBTE

PU-1H7HBTE splittern tar 1 HDMI signal och distribuerar ut den på 7 HDBaseT kontakter plus 1 "bypass" HDMI kontakt. HDBaseT standarden gör det möjligt att skicka okomprimerad HDMI, LAN funktionalitet, Power over Ethernet ( PoE ), IR och RS-232 över en kabel upp till 100 meter. Om det skulle behövas så kan man, genom "bypass" kontakten, länka vidare till ytterligare HDBaseT splitters för att distribuera HDMI signalerna till ytterligare skärmar.


CYP och vi rekommenderar att man använder PU-507RX eller PU-507WPRX mottagare för att få full funktionalitet ur systemet.

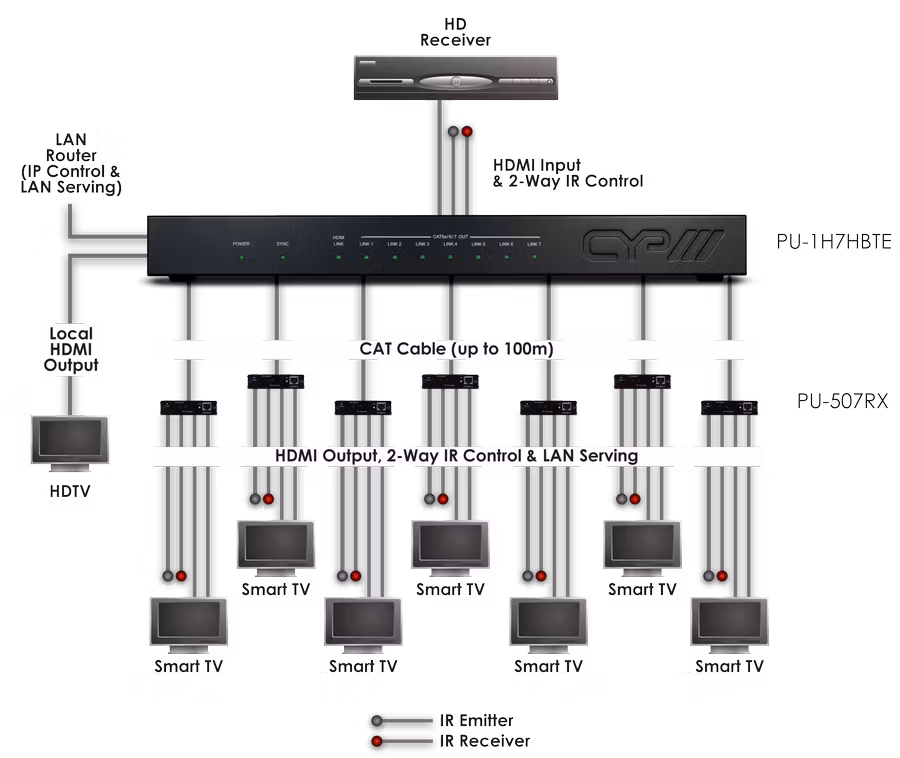

The PU-1H7HBTE splitter accepts 1x HDMI input and distributes to 7 HDBaseT™ outputs, plus 1 HDMI bypass output. The HDBaseT™ outputs allow uncompressed HDMI, LAN, PoE, IR, and RS-232 signals to be transmitted over a Single CAT5e/6/7 cable up to 100m. Installers can confidently distribute HDMI signals to 7 displays, and if required, use the HDMI bypass output to cascade the HDMI signal up to 5 times with additional HDBaseT™ splitters.

PU-507RX or PU-507WPRX Receivers are recommended to utilise the full 5-Play™ functionality of the HDBaseT™ outputs of this device.

Feature:
Supports all v1.4 HDMI resolutions plus 4k.
HDMI, HDCP, & DVI compliant
Supports uncompressed video/audio up to 10.2Gbps
Common supported resolutions : HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24, 4K2K: PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
Supports HDCP repeating and CEC functions
Uncompressed data transfer over single CAT cable (100m - CAT6/7: 80m - CAT5e)
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
Supports full 5-Play™ Convergence : HDMI / LAN / PoE (Power over Ethernet) / IR / RS-232
Supports 3D signals

Specifications:
Inputs:

1x HDMI [1x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x RJ45 [1x LAN Serving]

Outputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
7x RJ45 [7x HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]

POE PSU: 24V/6.25A
PSU:24V/2.7A
Dimensions:430mm [W] x 180mm [D] x 40mm [H]
Net Weight:2140g
Gross Weight:3800g
