PU-1H3HBTE
PU-1H3HBTE gör det möjligt att distribuera en HDMI källa upp till 3 HDBaseT mottagare. HDBaseT tekniken i denna pryttlen låter dig skicka okomprimerad HDMI, LAN, Power over Ethernet (PoE), IR och RS-232 över en enkel Cat5e/6/7 kabel upp emot 100 meter. Perfekt för hem och företags- installationer där man vill distribuera signalerna till upp till 3 skärmar. Just denna enheten har även en lokal HDMI utgång för ökad flexibilitet och denna produkt serien kan länka upp till 5 enheter för att leverera signaler upp till 50 olika skärmar.
Vi rekommenderar att använda PU-507RX eller PU-507WPRX mottagare för att få full funktionalitet med alla features.

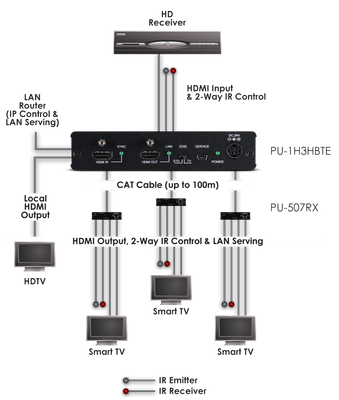

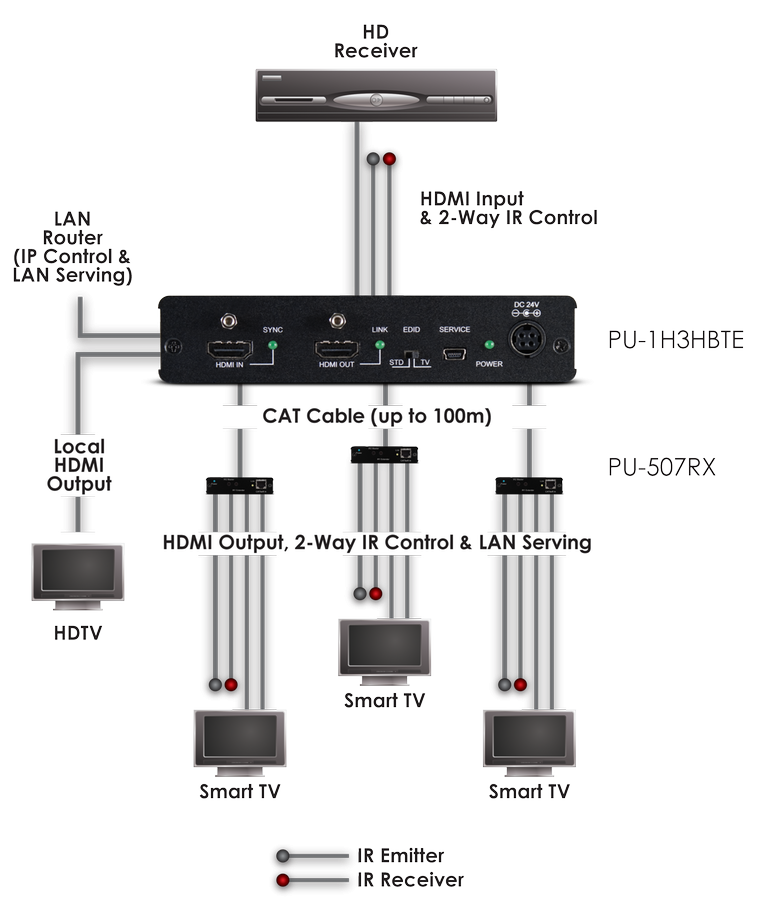

The PU-1H3HBTE enables a single HDMI source input to be distributed to 3 HDBaseT™ outputs. The HDBaseT™ outputs allow uncompressed distribution of HDMI, LAN, PoE, IR, and RS-232 signals over a Single CAT5e/6/7 cable up to lengths of 100m. Perfect for both residential and commercial AV installations, the PU-1H3HBTE can distribute HDMI signals to 3 displays. The product also includes an additional HDMI output for increased flexibility and can also be cascaded up to 5 times to allow distribution to potentially 50 screens or more.
The PU-507RX or PU-507WPRX Receivers are recommended to utilise the full 5-Play™ functionality of the HDBaseT™ outputs of this device.
Feature:
Supports all v1.4 HDMI resolutions including 4k.
HDMI, HDCP, & DVI compliant
Supports full 5-Play™ Convergence : HDMI / LAN / PoE (Power over Ethernet) / IR / RS-232
Common supported resolutions : HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24, 4K2K: PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
Supports uncompressed video/audio up to 10.2Gbps
Supports HDCP repeating and CEC functions
Additional HDMI bypass output provided to improve flexibility
Uncompressed data transfer over single CAT cable (100m - CAT6/7: 80m - CAT5e)
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
Supports 3D signals
Specifications:

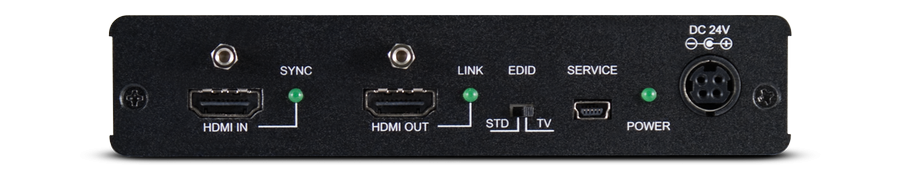

Inputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x RJ45 [1x LAN Serving]

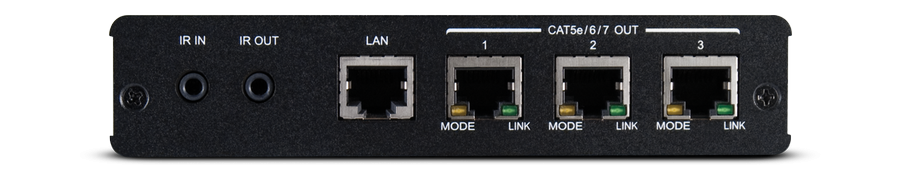

Outputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
3x RJ45 [3x HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
PSU:24V/4.16A
Dimensions:145mm [W] x 200mm [D] x 30mm [H]
Net Weight:580g
Gross Weight:720g
