AU-D21
En elektronisk optisk switch, med riktigt bra signalbehandling.
En liten "dip switch" på ena sidan används för att växla källa, man får använda en penna eller liknande.
VILL DU HA FJÄRRKONTROLL ATT VÄXLA MED? Kolla in AU-D41 optisk switch

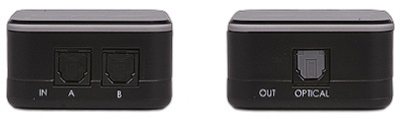

The AU-D21 is an Optical (Toslink) switcher, select between two Optical (Toslink) sources to one Optical (Toslink) output & maintain a reliable and loss-less audio signal transmission.
Features:
- 2-Way Digital Optical Audio Switcher
- Supports S/PDIF standard of digital audio transmission
- Compatible with cable lengths of 5m either side of the device
- Accepts uncompressed 2-channel LPCM (Linear Pulse Code Modulation) & compressed 2-channel and multi-channel Dolby and DTS audio signal
- Electromagnetic noise-free transmission
Specialication:
| Inputs | 2x Toslink [2x Optical DTS / Dolby Digital / 2 Channel LPCM] |
| Outputs | 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM] |
| PSU: | 5V/1.2A |
| Dimensions | 45mm [W] x 45mm [D] x 25mm [H] |
| Net Weight | 140g |
| Gross Weight | 200g |
