500718
Muxlab 500718 är en splitter för SDI signaler. Den kan splitta en 12G-SDI signal till 6 utgångar som alla stödjer 4K @ 60 Hz upplösning.Fördelen med att göra om signalerna till HDMI är att man kan använda sig av en billigare skärm än de traditionella SDI skärmarna.
The 12G-SDI 1×6 Splitter, 4K/60 (500718) allows one (1) 12G/6G/3G/HD/SD-SDI source to be distributed and amplified to up to six (6) 12G/6G/3G/HD/SD-SDI displays. The splitter supports up to 4K (3840 X 2160) video and HD audio, including 480i (SD-SDI), 720p/1080i (HDSDI), 1080p (3G-SDI), 4K/30 (6G-SDI) and 4K/60 (12G-SDI).
The device automatically detects the 12G/6G/3G/HD/SD-SDI signal and re-clocks and regenerates the signal at the output for extending distances between source and displays. Additionally, all connectors are on the rear panel for neater cabling.

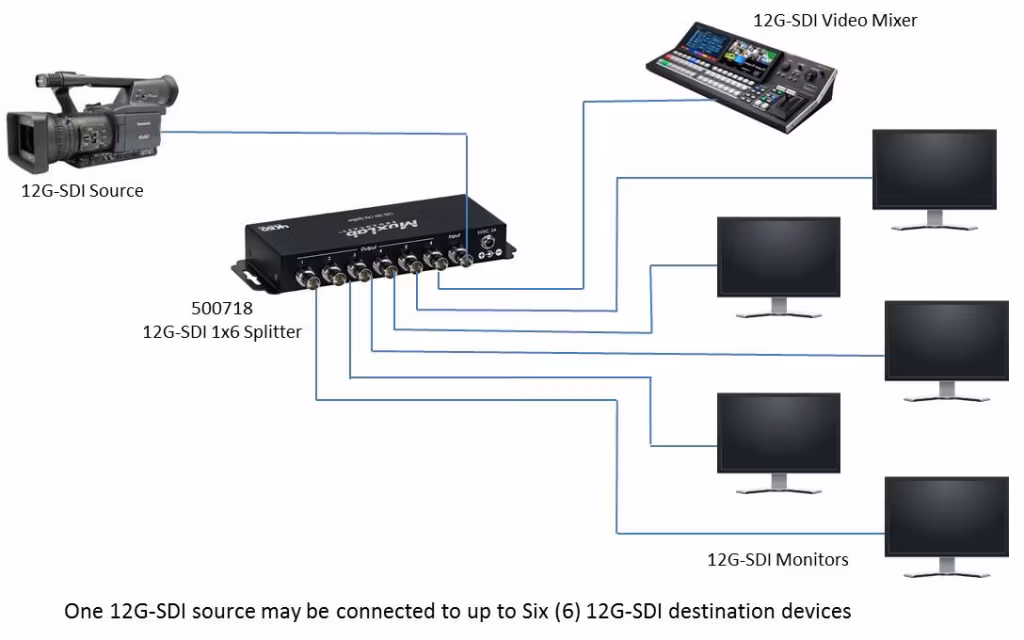

Distribute one 12G-SDI source to six displays
Supports up to 4K @ 60Hz, including 12G/6G/3G/HD/SD-SDI
Automatically detects re-clocks and regenerates the 12G/6G/3G/HD/SD-SDI signal
LED diagnostic

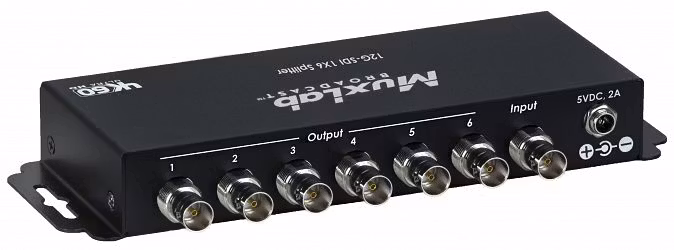

Connectors on rear for neater cabling
The device automatically detects the 12G/6G/3G/HD/SD-SDI signal and re-clocks and regenerates the signal at the output for extending distances between source and displays. Additionally, all connectors are on the rear panel for neater cabling.
Features
Distribute one 12G-SDI source to six displays
Supports up to 4K @ 60Hz, including 12G/6G/3G/HD/SD-SDI
Automatically detects re-clocks and regenerates the 12G/6G/3G/HD/SD-SDI signal
LED diagnostic
Connectors on rear for neater cabling
