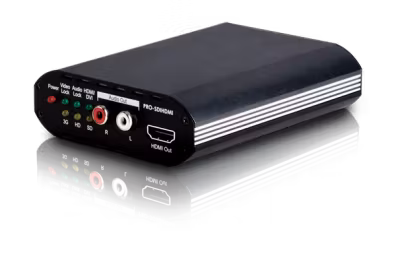

PRO-SDIHDMI
Utgående modell
Om du vill konvertera en SD-SDI / HD-SDI / 3G-SDI signal till en HDMI signal men också kunna skicka signalen vidare över SDI så är det denna produkten du letat efter. PRO-SDIHDMI tillåter dig
att skicka SDI signalen vidare upp till 300m medans du samtidigt kan plocka ut HDMI signaler till en skärm.

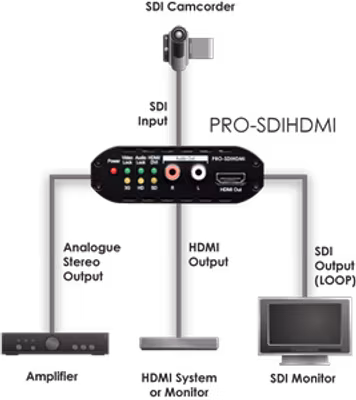

The PRO-SDIHDMI Converter accepts SD-SDI, HD-SDI, and 3G-SDI signals and converts to HDMI. The SDI input also has a bypass which is outputted simultaneously alongside the HDMI output allowing the SDI signal to be extended over distances up to 300m. This device also has the added benefit of an integrated audio de-embedder for sending 2-channel (L/R) audio to an AV amplifier.
Features:
Operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
Equalized and re-clocked loop output
Integrated audio de-embedder for max 8 channels of 48kHz audio
Auto video mode detection (3G/SD/HD)
Conversion from SMPTE 425M level B to Level A for 1080p 50/59.94/60 4:2:2 10-bit
Cascade multiple units for extending the signal longer distances
Simultaneous display with SDI and HDMI signal
Supports SDI signal distance up to 300M for SD signal, 200M for HD signal and 100M for 3G signal
Frequency Bandwidth 225MHz/link (HDMI 1.3)
Supplied with a Locking PSU
Specification:

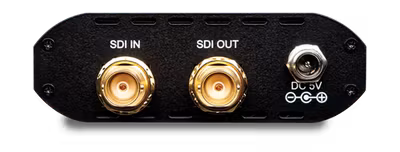

Inputs 1x BNC [1x SD-SDI / HD-SDI / 3G-SDI]

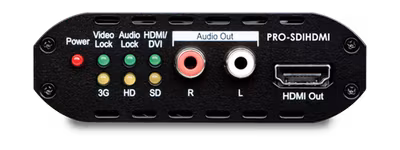

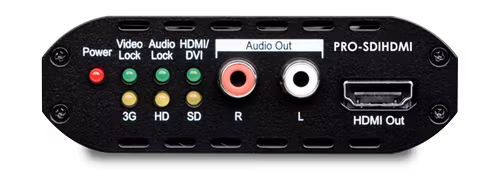

Outputs 1x BNC [1x Loop SD-SDI / HD-SDI / 3G-SDI], 2x RCA [1x Analogue Stereo (L/R)], 1x HDMI [1x HDMI Uncompressed AV and Data]
Power 5V/2.6A, DC (US/EU standards, CE/FCC/UL certified)
Dimensions 110mm (W) x 85mm (D) x 30mm (H)
Gross Weight 640g
Net. Weight 400g
