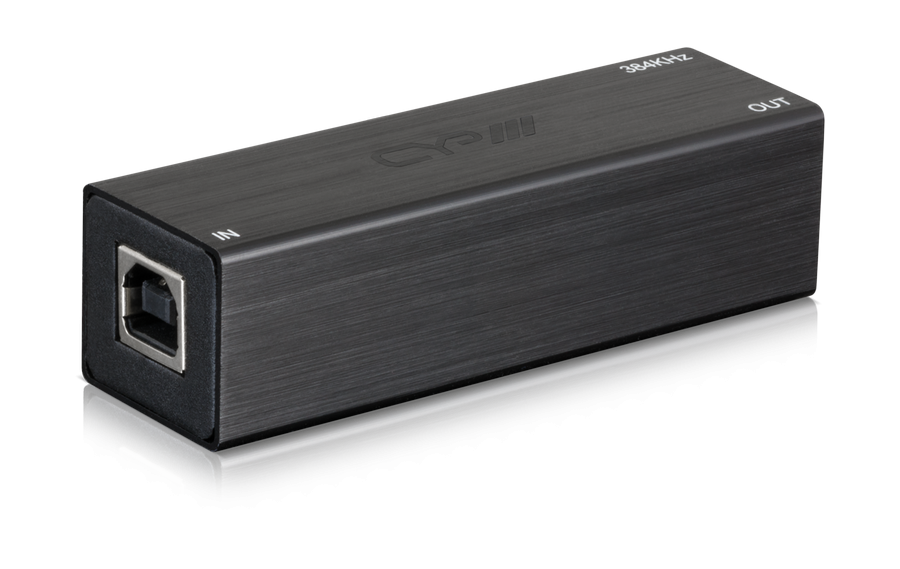

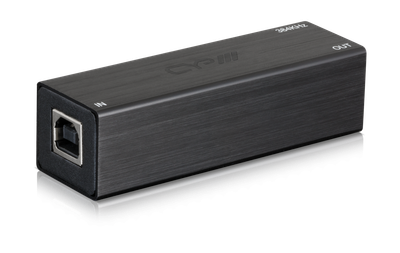

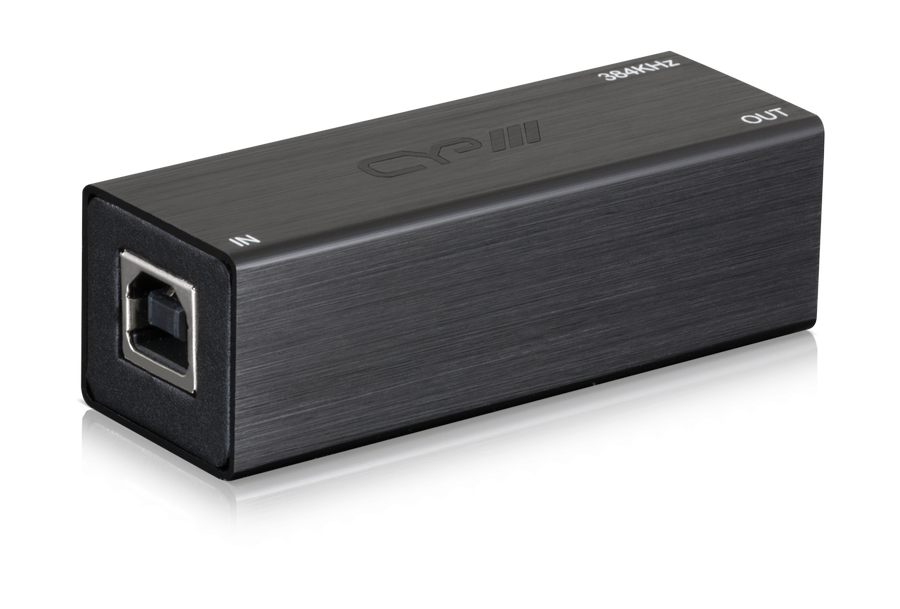

AU-D6-H

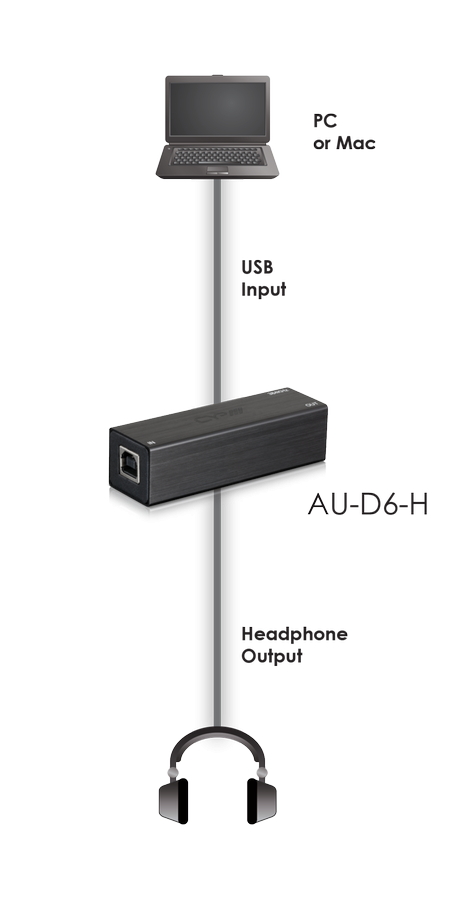

AU-D6-H är en USB till Stereo 3.5mm omvandlare, den kan ta en Audio Class 2.0 ström från en laptop eller desktop dator och lämna ut stereo kanal på 3.5mm
Vi har fått verifierat av CYP///'s Utvecklingsavdelning i Taiwan att med en USB-OTG (On The Go) kabel och en Samsung S9 att det fungerar utmärkt att få analog audiosignal ur telefonen med denna. Det innebär att bara din Android-telefon har stöd för USB-OTG och USB-AUDIO så kan du använda denna för att få ut analogt ljud ur din Android-telefon.
The USB Digital Audio Converter is specially designed to take the audio output from a USB Audio source such as a Laptop or PC and convert it to high quality analogue stereo for use with headphones or earphones. It utilises a superior USB Audio processor (xMos U8A) and digital-to-analog converter (DAC) with a maximum sampling rate up to 384kHz/24-bit and an integrated amplifier for a better frequency response to avoid signal loss. Microsoft Windows and Mac OSX compatible.
Superior USB audio processor (xMOS U8A) accepts signals up to 384kHz/24-bit sample rates
Superior Digital-to-Analogue (DAC) engine with support up to 384K for conversion to an analogue signal
Integrated headphone amplifier for better frequency response avoiding signal loss
Simple operation and compact design for use on-the-go or at home
Compatible with Microsoft Windows XP, Vista, 7, 8, 8.1, 10 (32 & 64-bit) drivers provided
Compatible with Mac OS X version 10.6.4 or better (USB Audio Class 2.0 is natively supported – no driver required)
No external power required
Features:
Convert USB Audio Class 2.0 from a Laptop/PC and output to high quality analogue audio to headphones/earphonesSuperior USB audio processor (xMOS U8A) accepts signals up to 384kHz/24-bit sample rates
Superior Digital-to-Analogue (DAC) engine with support up to 384K for conversion to an analogue signal
Integrated headphone amplifier for better frequency response avoiding signal loss
Simple operation and compact design for use on-the-go or at home
Compatible with Microsoft Windows XP, Vista, 7, 8, 8.1, 10 (32 & 64-bit) drivers provided
Compatible with Mac OS X version 10.6.4 or better (USB Audio Class 2.0 is natively supported – no driver required)
No external power required
Specifications:
| Input: | 1x USB Type B [1x USB (2.0) Audio] |

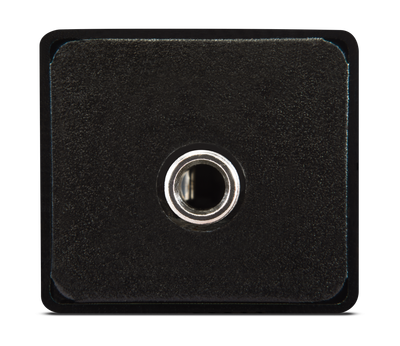

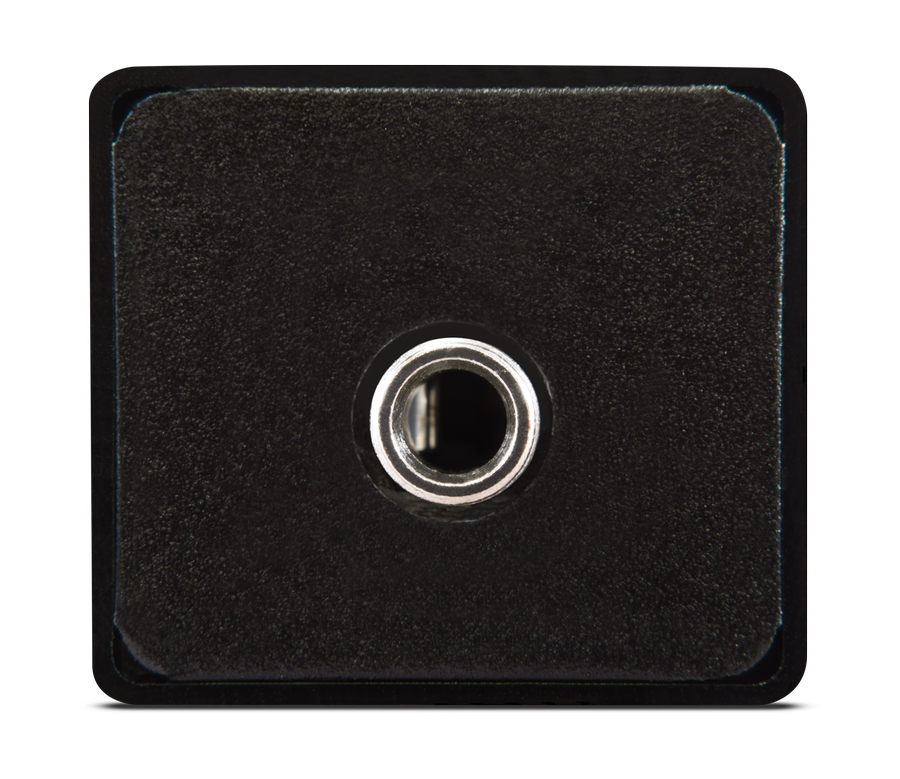

| Output: | 1x 3.5mm Stereo mini-jack [1x Headphone] |
| PSU: | USB powered |
| Dimensions: | 25mm [W] x 69mm [D] x 22mm [H] |
| Net. Weight: | 48g |
| Gross Weight: | 80g |
