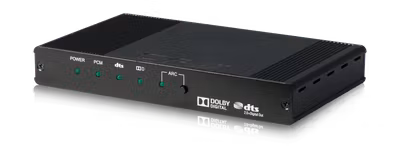

AU-1H1DD-4K22
Med AU-1H1DD-4K22 kan man plocka ut Dolby Digital eller DTS signaler ur en HDMI kabel och ner-konvertera det till en 2 kanals signal.
De analoga utgångarna lämnar alltid 2 kanals stereo signaler ut men de digitala utgångarna (optiskt & Koaxialt) och HDMI utgången kan man själv välja om man vill ha ner-konverterat eller inte.
The AU-1H1DD-4K22 is an advanced solution for de-embedding and down-mixing audio signals from the HDMI input (up to Dolby® Digital and DTS® 2.0+Digital Out). Connect the AU-1H1DD-4K22 between the source and your display via HDMI, and select 2CH LPCM or bypass. The digital audio outputs can be set to either 2CH LPCM or bypass. The L/R analogue outputs will always output down-mixed stereo (with audio up to Dolby® Digital and DTS® 2.0+Digital Out). This device supports the latest 4K2K resolutions, HDMI2.0 and HDCP2.2 for stunning results.
HDCP 2.2, HDMI2.0, and DVI compatible
Built-in Dolby Digital Decoder
Built-in DTS 2.0+Digital Out Decoder
Integrated digital interpolator filter and Digital-to-Analog Converter (DAC)
Supports HDTV resolutions up to 4K2K: 3840×2160@24/25/30Hz, 4096×2160@24/25/30Hz, 3840×2160@50/60Hz (YUV444) & 4096×2160@50/60 (YUV444)
Supports simultaneous audio outputs on HDMI, analogue L/R, Coaxial and Optical
Supports Dolby Digital sampling rates up to 48kHz
Supports DTS sampling rates up to 96kHz
Supports LPCM input sampling rates up to 96kHz
Supports coaxial and optical output audio sampling rates up to 96kHz
Supports up to 3m HDMI cables on input & output
Features:
HDCP 2.2, HDMI2.0, and DVI compatible
Built-in Dolby Digital Decoder
Built-in DTS 2.0+Digital Out Decoder
Integrated digital interpolator filter and Digital-to-Analog Converter (DAC)
Supports HDTV resolutions up to 4K2K: 3840×2160@24/25/30Hz, 4096×2160@24/25/30Hz, 3840×2160@50/60Hz (YUV444) & 4096×2160@50/60 (YUV444)
Supports simultaneous audio outputs on HDMI, analogue L/R, Coaxial and Optical
Supports Dolby Digital sampling rates up to 48kHz
Supports DTS sampling rates up to 96kHz
Supports LPCM input sampling rates up to 96kHz
Supports coaxial and optical output audio sampling rates up to 96kHz
Supports up to 3m HDMI cables on input & output
Specification:
| Input: | 1x HDMI [1x HDMI 2.0 (ARC) Uncompressed AV and Data] |

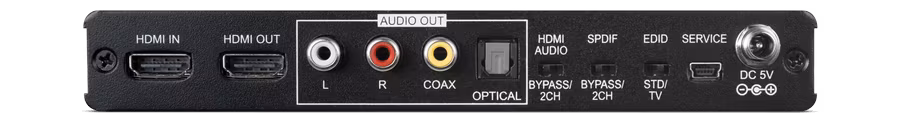

| Output: | 1x HDMI [1x HDMI 2.0 Uncompressed AV and Data] 2x RCA [1x Analogue audio Stereo (L/R)] 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM] 1x RCA [1x Coaxial Dolby Digital / DTS / 2 Channel LPCM] |
| : | : |
| PSU: | 5V/2.6A |
| Dimensions: | 180mm [W] x 111mm [D] x 25mm [H] |
| Net. Weight: | 368g |
| Gross Weight: | 868g |
