500435

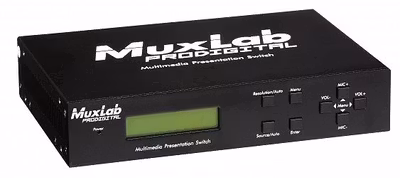

Muxlab 500435 är en presentations switch som fungerar som en blandning mellan en omskalare(sk. scaler), switch(sk. växel) och omvandlare.
Med HDMI och VGA ingångar för video där VGA "porten" klarar både Komponent ( YPbPr ) och Komposit video, utöver VGA så klarar sig dom flesta.
Switchen släpper ut HDMI och HDBaseT på varsin utgång. Det finns även terminalblock för ljudet till både VGA och HDMI portarna.

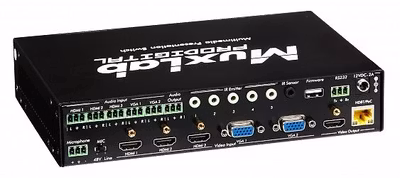

The 5×1 HDMI / HDBT Presentation switch is a compact scaler switcher with 5 video inputs (3 HDMI, 2 VGA) and 6 audio inputs (3 HDMI audio & 2 VGA with audio switched following the video: 1 MIC audio input). The VGA input supports VGA, Component Video (YPbPr) and Composite Video.
The 5×1 HDMI / HDBT Presentation switch scales & switches any video signal to HDMI output and HDBaseT output for a transmission over up to 70 m of Cat5e/6 with PoC support.
With 1 IR Sensor, 5 IR Emitters and 1 RS232 port, bidirectional IR & RS232 signals can be transmitted simultaneously between the 5×1 HDMI / HDBT Presentation switch and the HDMI Extender PoC/PoE Receiver.
Supports video source auto-switching function
Bi-directional IR & RS232 control
Supports HDMI, VGA, Composite Video, and Component Video (YPbPr)
Output resolutions selectable (1920x1200, 1920x1080, 1600x1200, 1360x768, 1280x800, 1280x720, 1024x768)
Supports CEC, with commands to enable/disable this function
Compliant with HDCP
Supports online software upgrading
MIC port supports balance/unbalance signal, suppress the external noise effectively
48V phantom power to support condenser microphone
3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone
Controllable via button, IR & RS232
Powerful OSD function
The 5×1 HDMI / HDBT Presentation switch scales & switches any video signal to HDMI output and HDBaseT output for a transmission over up to 70 m of Cat5e/6 with PoC support.
With 1 IR Sensor, 5 IR Emitters and 1 RS232 port, bidirectional IR & RS232 signals can be transmitted simultaneously between the 5×1 HDMI / HDBT Presentation switch and the HDMI Extender PoC/PoE Receiver.
Features
Supports video source auto-switching function
Bi-directional IR & RS232 control
Supports HDMI, VGA, Composite Video, and Component Video (YPbPr)
Output resolutions selectable (1920x1200, 1920x1080, 1600x1200, 1360x768, 1280x800, 1280x720, 1024x768)
Supports CEC, with commands to enable/disable this function
Compliant with HDCP
Supports online software upgrading
MIC port supports balance/unbalance signal, suppress the external noise effectively
48V phantom power to support condenser microphone
3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone
Controllable via button, IR & RS232
Powerful OSD function
