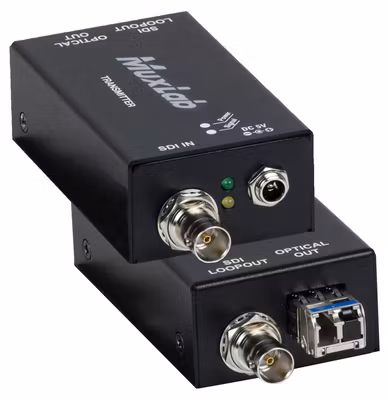

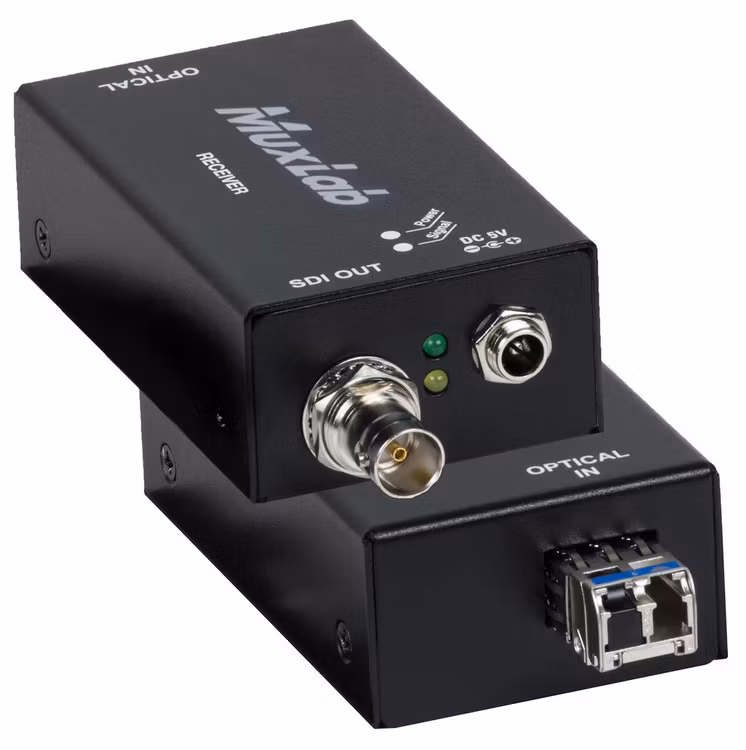

Muxlab 12G-SDI Fiber förlängningskit, 10km

19 700 kr



500713

Det här är ett förlängningskit för 12G-SDI signaler. Kittet kan sträcka sig upp till 10 km med en singlemode fiber kabel.


The 12G-SDI Fiber Extender Kit allows 12G-SDI to be transmitted up to 33,000ft (10km) via a one singlemode fiber cable in a point-to-point configuration at all specified bit rates.

The 12G-SDI Fiber Extender Kit supports transmission of up to 12 Gbpsof digital video within television broadcasting facilities and between professional video equipment.

Applications

Video production, broadcasting, camcorder, studio-to-studio, post-production, live events, medical imaging displays, mobile video, 12G/6G/3G/HD/SD-SDI routing, 12G/6G/3G/HD/SD-SDI CCTV, medical imaging.

Features

  • Supports 12G/6G/3G/HD-SDI signals
  • Supports up to 4K/60 video
  • Extend transmission up to 6.2mi (10km) over singlemode fiber
  • LED diagnostics
