Muxlab 3U rackram för 16 transceivers

4 400 kr



500920

Använd platsen för 3U i ett 19" rack mot en ram som har plats för 16 st av muxlabs transceiver.

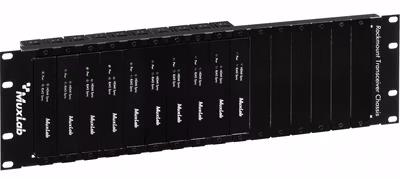

The 16-Port Rackmount Transceiver Chassis is designed as a head-end cable management solution, allowing any combination of up to sixteen (16) MuxLab Transceivers to be installed in a standard 19” telecom relay rack. Head-end AV equipment such as DVD players, video servers and cable boxes may be installed in a local wiring closet and connected to the Cat5e/6 structured cabling system via a wide array of MuxLab Transceiver solutions. The Transceiver may be installed in either front or rear- facing orientation depending on the application. Blank filler plates can be ordered separately in quantities of four (4) (P/N: 500921). Mounting brackets for mounting 16 Transceivers to the rack are included, but additional brackets can be ordered separately in quantities of four (4) (P/N: 500922) for mounting two (2) transceivers to the rack.

The 16-Port Rackmount Transceiver Chassis fits most MuxLab Extenders including:

500112 LongReach CCTV IP PoE
500114 LongReach CCTV över IP, PoE, upp till 1 km
500451 HDMI Extender Kit, HDBaseT Lite, UHD-4K
500451-PoE HDMI Extender Kit, HDBaseT Lite, UHD-4K, PoE
500453 HDMI / LAN Extender Kit, HDBT, UHD-4K
500454 HDMI / RS232 extender kit, HDBT, UHD-4K,
500454-PoE HDMI / RS232 extender kit, HDBT, UHD-4K, PoE
500456 HDMI 4-Play
500753 HDMI / RS232 över IP PoE
500754 Video Wall över IP PoE
500755 Ljud / RS232 över IP PoE
500756 3G-SDI / RS232 över IP PoE
500757 HDMI över IP H.264 PoE
500758 HDMI 4K över IP PoE
500759

Applications:
Commercial and residential AV systems
Classroom projector systems
Digital signage
Boardroom systems
Collaborative PC systems

Features
Supports up to 16 Transceivers
Space efficient 3U high, fitting a 19” rack
Supports front or rear facing orientation
Includes bracket kits for 16 Transceivers and rack mounting hardware
Provides for neat installation and cabling
Blank filler plates (500921) and additional bracket kits (500922) sold separately
