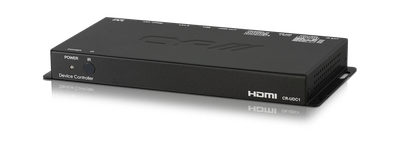

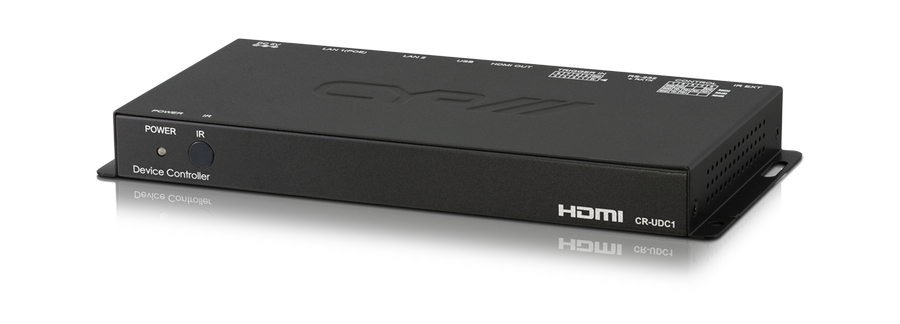

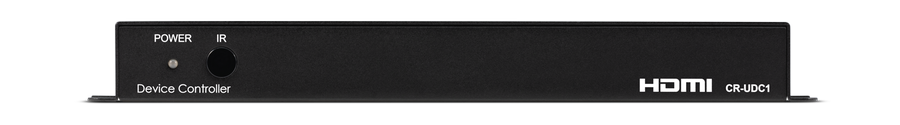

CR-UDC1
Om du tycker att det är bökigt att konfigurera flera av CYP///s AV enheter var för sig så kan man använda sig av denna för att samla vissa saker under ett GUI.
Genom att koppla in denna i samma nätverk som de andra enheterna du vill styra så kommer förberedda enheter automatiskt att dyka upp i gränssnittet där man kan övervaka och kontrollera dem. Om dem inte dyker upp så kan man manuellt lägga till enheter från 3:e part.
CR-UDC1 kan användas för att konfigurera schemalagda events över flera enheter och rum. Editorn för events har ett antal olika lösningar för att trigga utöver schemalagda events. ex.vis kan man ha fysiska knappar kopplade till enheten eller styra den över det grafiska webgränssnittet. Detta är en idealisk kontrollenhet för större event och konferensrum.
The CR-UDC1 is a powerful and flexible solution for controlling a wide range of controllable equipment within the same local network.
With this unit connected to the local network, natively supported devices can be automatically detected, monitored, and controlled via a convenient unified WebGUI interface with the ability to manually add control functionality for 3rd party devices as well.
Devices can be assigned, as desired, across multiple rooms with individually defined usage scenarios, with automation events, in each room. Additionally, this unit supports individual scenario configuration scripts and provides a comprehensive, visually structured, automation event editor to assist installers in building their imagined event space.
The powerful automation event editor supports scheduling, physical trigger activation, device monitoring and direct device polling to control the actions of devices. It’s the ideal central control unit for conference rooms or large event venues!
The unit’s WebGUI can be accessed remotely via a standard web browser, or it can be controlled locally by connecting the unit to an HDMI display with a USB mouse and keyboard. Naturally, it can also be connected to an HDMI touchscreen (HDMI & USB) for a sophisticated and user friendly control option.

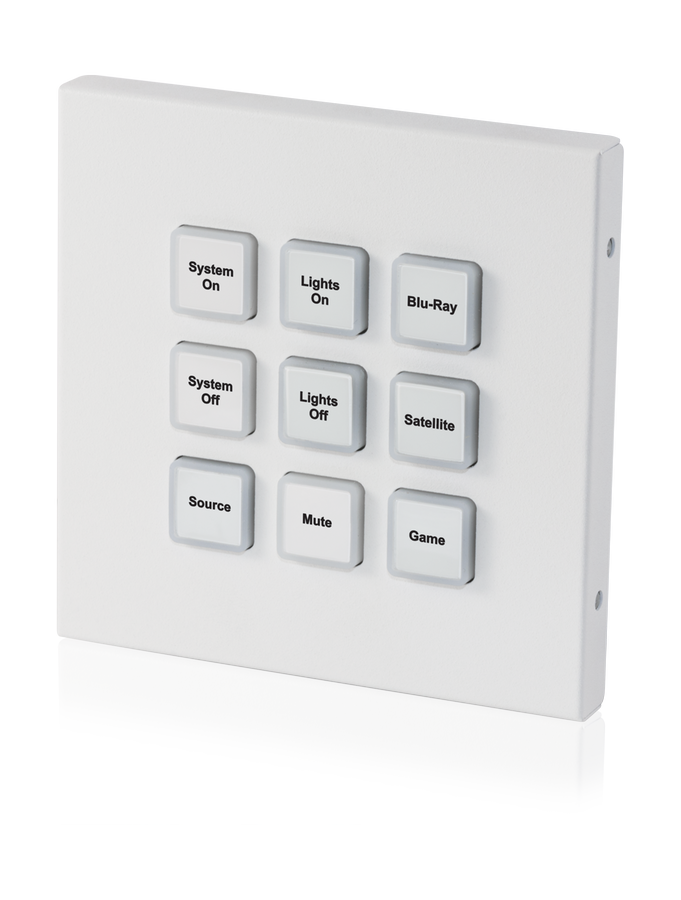

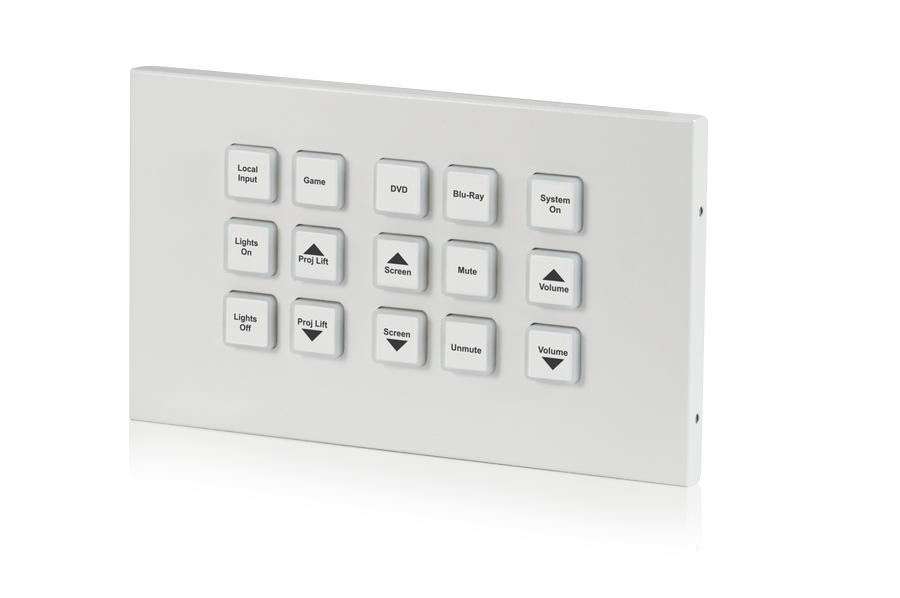

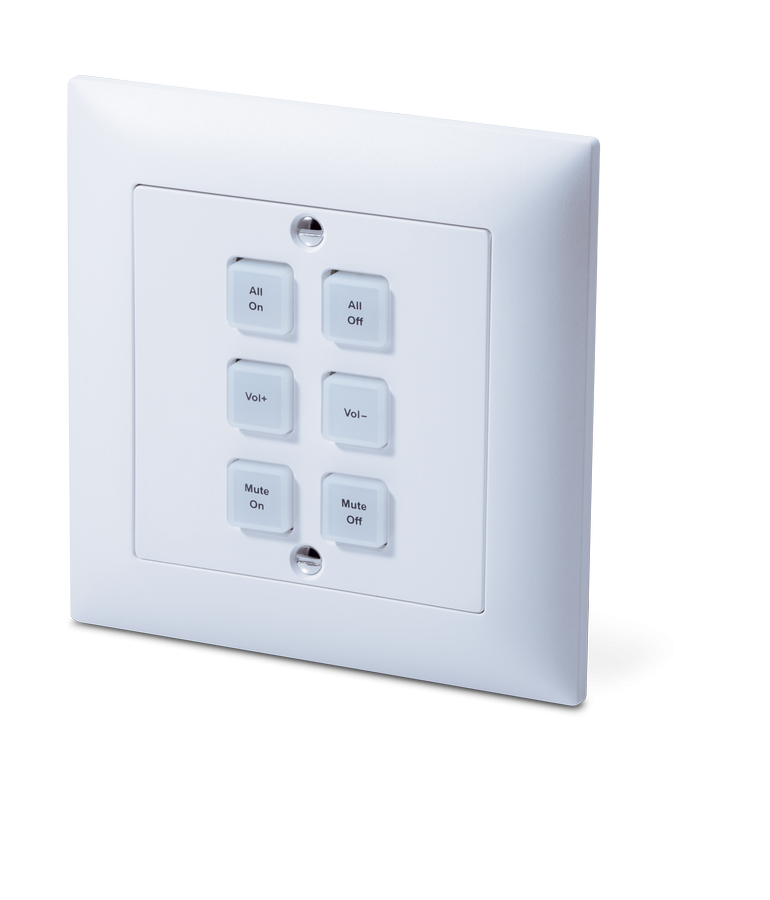

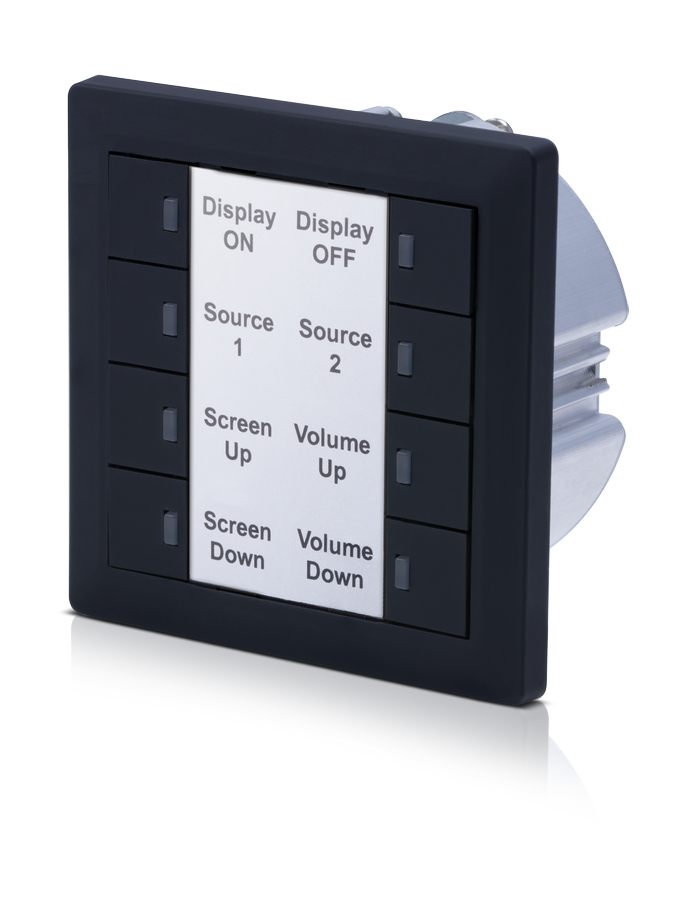

For when a simpler, and more compact, direct control option is needed, a trigger input interface has been provided. This allow the easy addition of a remote control keypad, or other trigger-supporting product, which can be installed within a podium or within a table in a conference room or classroom.
Standard control is available via WebGUI (remote or local), RS-232, Telnet, and triggers.
Features:
- Enables the management, configuration and control of multiple compatible devices
- WebGUI provides dashboard presets for controlled devices status
- Discover, connect and control all devices on the same network
- Direct HDMI output displays the WebGUI and system status
- Supports the use of a USB mouse and keyboard to locally control the WebGUI (Optional)
- Connect HDMI and USB to touchscreen for interactive webgui programming and control
- Can be powered directly by Power over Ethernet (PoE) when connected to an Ethernet switch that follows the 802.3af PoE standard (Optional)
- Trigger Control Keypad support for easy, single-button, preset activation (Optional - CR-TG1)
Specifications:

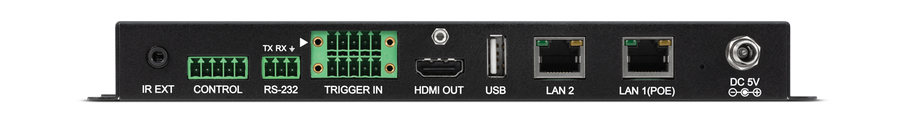

| Inputs | 2x RJ45 [2x LAN connections IP] 1x Phoenix (10 pin) [1x Connection for CR-TG1 Trigger In (8)] 1x Phoenix (3 pin) [1x RS-232] 1x USB Type A [1x Standard USB connection Propriety Data] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] |
| Outputs | 1x HDMI [1x HDMI Uncompressed AV and Data] |
| POE PSU: | PoE |
| PSU: | 5V/3A |
| Dimensions | 231mm [W] x 117mm [D] x 25mm [H] |
| Net Weight | 916g |
| Gross Weight | 1066g |
