500755
Med Muxlab 500755 Ljud över IP transceiver kan man sända och ta emott ljud var man vill i ett befintligt IP nätverk.Den stora fördelen med att använda sig av det befintliga nätverket är naturligtvis att man slipper dra nya kablar vilket både kan vara dyrt och besvärligt.
Användningsområdena är i princip obegränsade: Konferensrum, mässhallar, restauranger, offentliga miljöer, köpcentra mm.
Tänk en placering av en musikspelare centralt i huset, sedan en mottagare inkopplad till nätverket var som helst med en aktiv högtalare tillkopplad. Ljudet finns var som helst. En mikrofon på scenen där ljudet skall tillbaka till mixerbordet, mm.mm.

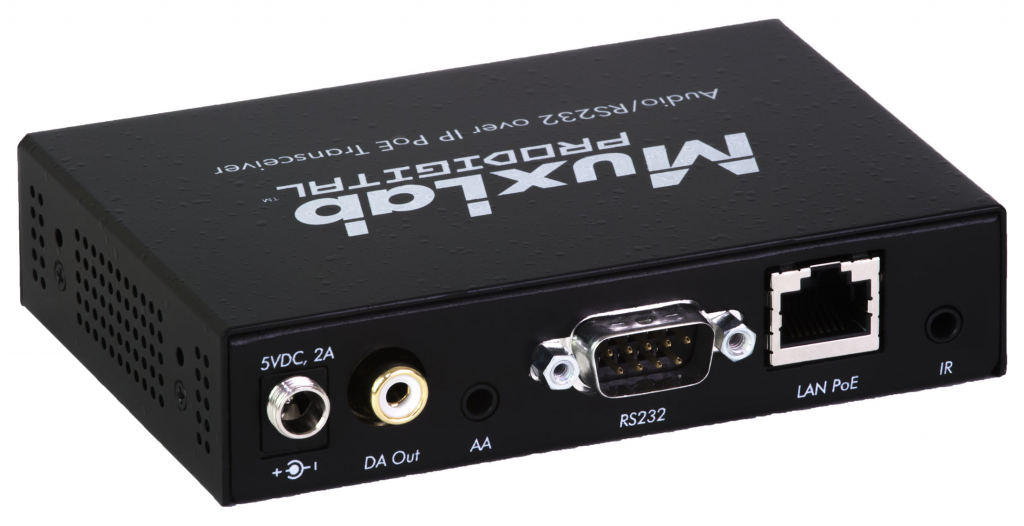

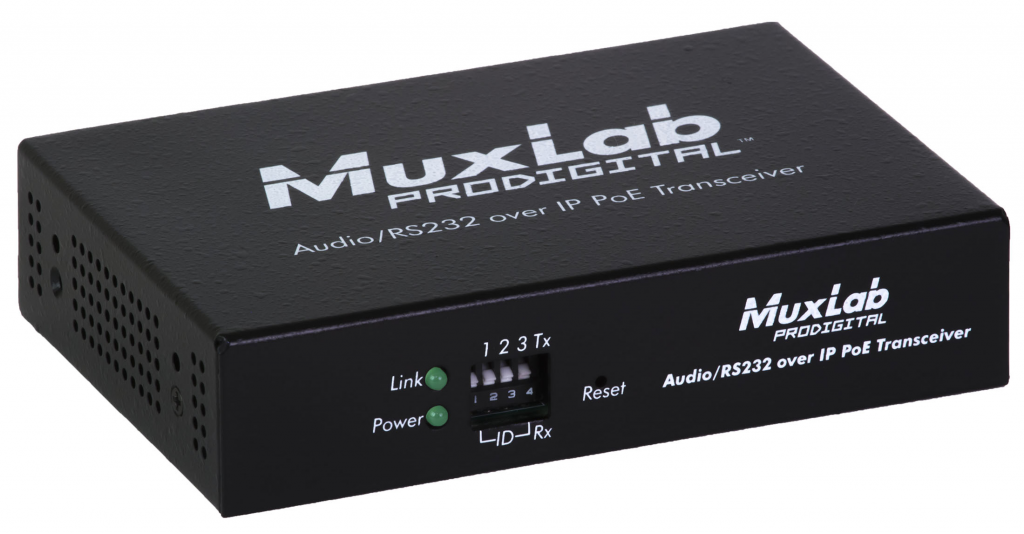

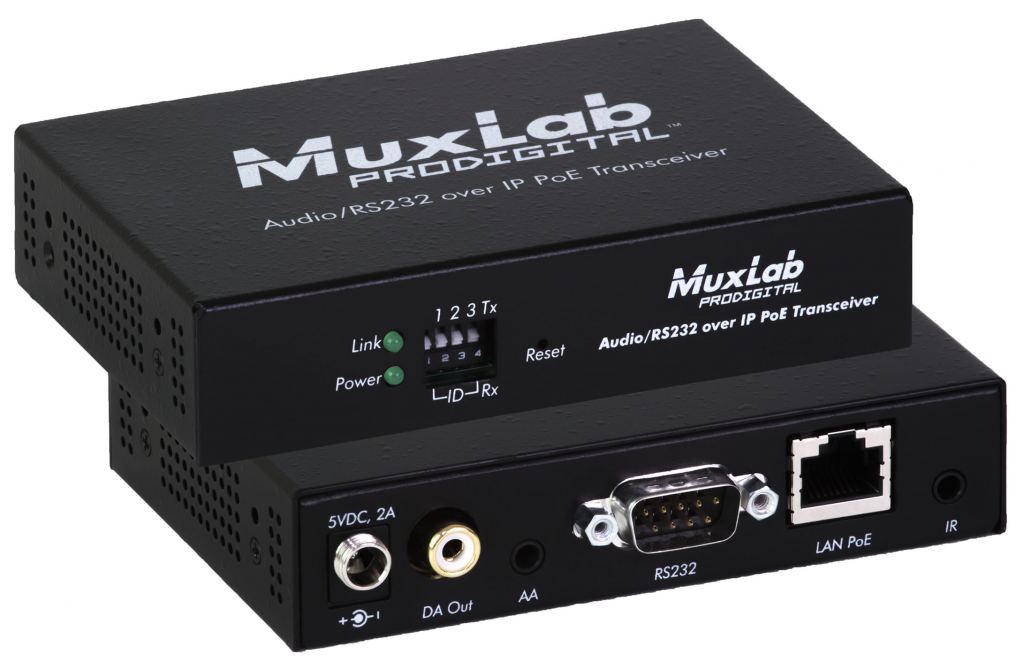

The AUDIO / RS232 over IP PoE Transceiver is an extender that allows 2CH audio signals to be extended up to 330ft (100m) via Cat5e/6 cable in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint is supported by connecting several Transceivers to the same local Ethernet network. The device supports PoE (PD) if used with a PoE (PSE) Ethernet Switch, and RS232 and IR transmission (IR Emitters and Sensors sold separately). The Transceiver can be configured as a Transmitter or Receiver.
Typical Applications:
Commercial and residential AV systems
Classroom projector systems
Digital signage
Boardroom systems
Collaborative PC systems
Medical information systems
Note: This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet Switch. If a PoE (PSE) Ethernet Switch is unavailable, then the power supply (500993) may be purchased separately.
FEATURES
Extend 2CH audio signals up to 330ft (100m) over Cat5e/6 cable

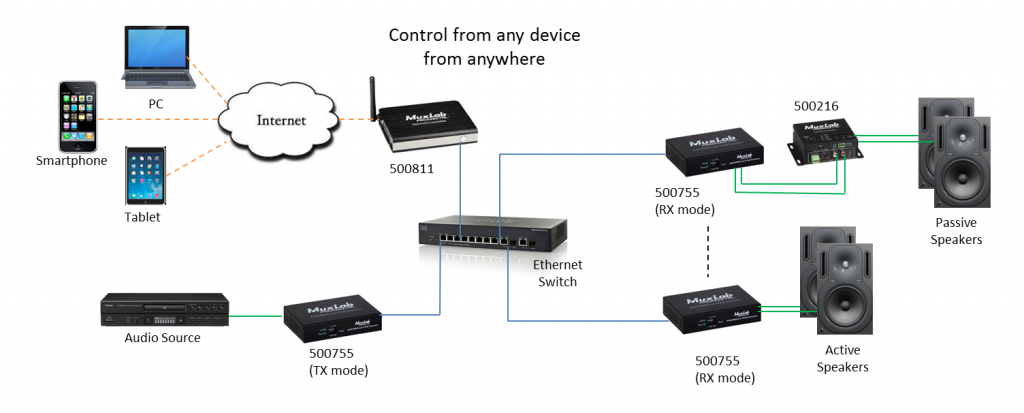

Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
Supports 100’s of Transceivers depending on network bandwidth
Supports RS232 and IR transmission for remote control
2CH Analog Audio In/Out & Digital Audio Out
PoE powered
Typical Applications:
Commercial and residential AV systems
Classroom projector systems
Digital signage
Boardroom systems
Collaborative PC systems
Medical information systems
Note: This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet Switch. If a PoE (PSE) Ethernet Switch is unavailable, then the power supply (500993) may be purchased separately.
FEATURES
Extend 2CH audio signals up to 330ft (100m) over Cat5e/6 cable
Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
Supports 100’s of Transceivers depending on network bandwidth
Supports RS232 and IR transmission for remote control
2CH Analog Audio In/Out & Digital Audio Out
PoE powered
