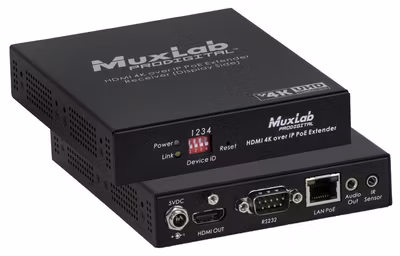

Muxlab HDMI 4K över IP, PoE, Mottagare

7 200 kr



500758-RX

Muxlab 500758-RX är ett kitt för att ta emot HDMI 4K UHD över ett nätverk.


Kittet är designat att arbeta med en PoE ethernet switch. Om man inte har en PoE switch så krävs det separata strömförsörjare (500993).


The HDMI 4K over IP PoE Extender Kit allows HDMI equipment to be extended up to 330ft (100m) up to 4K (3840×2160) resolution @ 30Hz via one (1) Cat5e/6 cable in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint configurations are also possible by connecting several units to the same local Ethernet network, and the device supports PoE (PD) if used with a PoE (PSE) Ethernet Switch.

Note: This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet Switch. If a PoE (PSE) Ethernet Switch is unavailable, then the power supply (500993) may be purchased separately.

Features


Supports HDMI up to 4K @ 30Hz (4:4:4)
Supports 100’s of Transmitters & Receivers depending on network bandwidth
Extend HDMI up to 330ft (100m) over Cat5e/6
Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
Supports audio insert (TX) & audio extract (RX)
Supports RS232 and IR transmission for remote control
