Muxlab 3G-SDI till HDMI förlängningskit

11 500 kr



500715

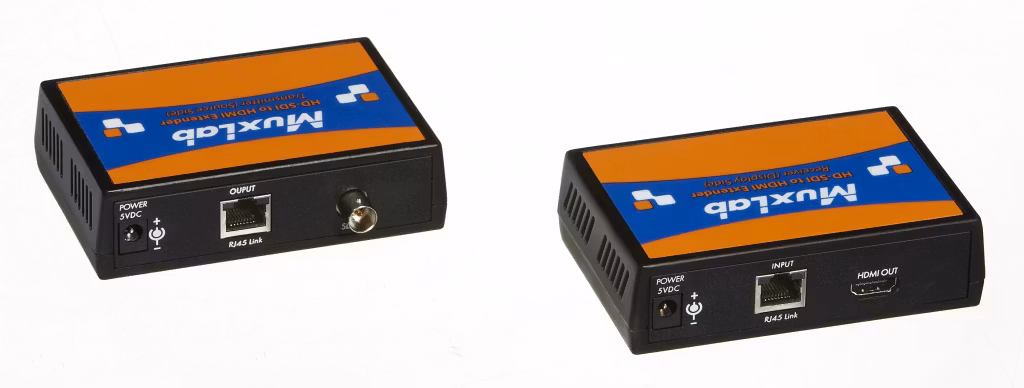

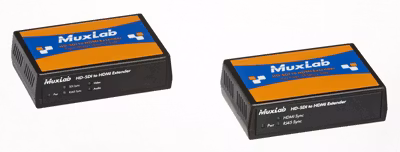

Här har vi en 3G-SDI till HDMI förlängningskit som med hjälp av en nätverkkkabel kan förlänga en HD-SDI signal upp till 100 meter i en point-to-point konfiguration.

The 3G-SDI to HDMI Extender Kit (500715) converts HD-SDI to HDMI and then transmits it up to 330 ft (100m) via Cat5e/6 cable at all resolutions in a point-to-point configuration. The HD-SDI to HDMI Extender Kit supports transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) within television facilities and between professional video equipment.

Features
Up to 330 feet ( 100 meter ) via Cat5e cables
Up to 400 feet ( 122 meter ) via Cat6 cables
LED diagnostics: sync, SDI detect
Supports:
SDI-SMPTE 259M-C ( 270 Mbps )
HD-SDI-SMPTE ( 1.485, 1.485/1.001 Gbps )
HD-SDI-SMPTE 424M/425M ( 2.97/3.0 Gbps )
