SY-12H-4K22
Här har vi en scaler med en ingång och två utgångar som är designad för att skala upp 1080p till en 4K UHD signal eller skala ner en 4K UHD signal till 1080p med synkroniserat digitalt ljud.
Enheten bjuder på ett användarvänligt interface för styrning medans man kan får upp informationen direkt på skärmen som är kopplad till HDMI utgången.
Man kan välja vilken upplösning som skall användas för utgångarna individuellt. Man kan även sätta enheten i ett "Test pattern"-läge för att enkelt testa vad för upplösningar en skärm/tv/monitor klarar av.
SY-12H-4K22 har även ett avancerat EDID och HDCP managment system.
This SY-12H-4K22 is designed to upscale 1080p signals into 4K UHD (18Gbps) or downscale 4K UHD (18Gbps) signals into 1080p with synchronized digital audio output. The user friendly interface provides simple control of the unit while viewing the OSD directly on the HDMI outputs. The input signal can be outputted to both HDMI outputs simultaneously with a different resolution on each or the unit can generate a test pattern at a preferred video resolution for easy on-site display testing.
The unit also includes comprehensive EDID and HDCP management, and basic signal event automation via RS-232 or CEC. This unit can be controlled easily by the front panel buttons (with OSD) or by RS-232.
Features:
- HDMI input and output with 18Gbps (600MHz) 4K UHD with HDR support
- DVI 1.0 compliant with the use of an HDMI-DVI adapter
- HDCP 2.2 Compliant
- 1 x HDMI input and 2 x HDMI outputs
- Supports HDCP 2.2 to HDCP1.4 conversion
- HDMI signal bypass on both outputs or upscales 1080p signals to 4K on output B and downscales 4K signals to 1080p on output A
- Supports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit)
- Supports 4K HDR at 24/30Hz (YUV 4:4:4) and 50/60Hz (YUV 4:2:0) with up to 12- bit color
- Supports 16-bit Deep Color up to 1080p@60Hz
- Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- Supports color space conversion of 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources
- Integrated EDID and HDCP management
- Basic signal event automation (via RS-232 or CEC)
- Test pattern generation at selected resolutions for on-site display testing

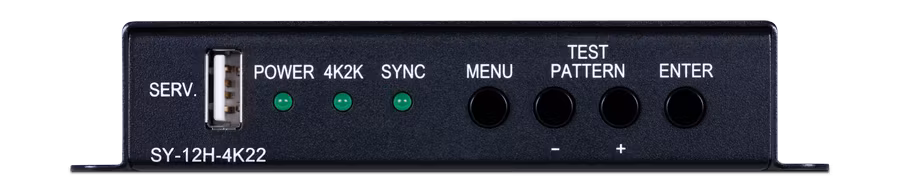

- Front Panel Controls with OSD, and RS-232
Specifications:
| Inputs | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x USB Type A [1x Service and comms port Propriety Data] 1x Phoenix (3 pin) [1x RS-232] |
| Outputs | 2x HDMI [2x HDMI Uncompressed AV and Data] 1x Phoenix (3 pin) [1x RS-232] |
| PSU: | 5V/2.6A |
| Dimensions | 128mm [W] x 83mm [D] x 25mm [H] |
| Net Weight | 276g |
| Gross Weight | 665g |
