OR-42CD-4K22
Här har vi en matris växel med fullt support för 4K vid 60 Hz med 4:4:4 Color subsampling , 8-bit Color depth och HDR.
Med 4 ingångar och 2 individuella utgångar så kan man fritt växla vilken ingång som skall visas på vilken utgång.
Utöver matris funktionaliteten så har denna även stöd för att plocka ut ljudet ur en HDMI-ström på en analog stereo kanal 3.5mm.
The OR-42CD-4K22 provides the ability to connect up to four 4K HDR HDMI sources to up to two 4K HDR HDMI displays and freely switch between them. This matrix fully support for 4K@60Hz (4:4:4, 8- bit) signals as well as support for 16-bit Deep Color, HDR (High Dynamic Range), 3D content, HD audio and other features defined by the HDMI 2.0 specification.
A high-quality local analog stereo audio breakout from a selected HDMI output is also available. Each input’s EDID can be independently set to use either an internal (1080p@60Hz) or external (sink-copied) EDID. This unit also provides per-output auto source switching as well as connected display power control using CEC or RS-232 commands.

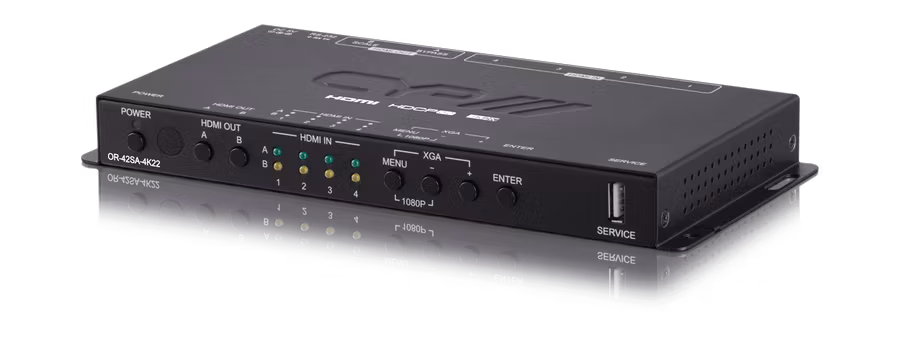

Control of the unit is provided via front panel buttons, RS-232, and IR remote.
Features:
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
- 4 HDMI inputs and 2 HDMI outputs
- Matrix switching with sequential input selection via front panel controls or discrete input selection via IR remote and RS-232
- Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit & HDR) video input and output
- Supports 10-bit and 12-bit HDR (High Dynamic Range) input and output
- Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
- High-quality DAC provides local analog stereo audio breakout from the selected HDMI output (LPCM 2.0 sources only)
- Independent input based EDID management with internal or external EDID options
- Basic display power automation via RS-232 and CEC
- Controllable via front-panel buttons, RS-232, and IR remote
Specifications:

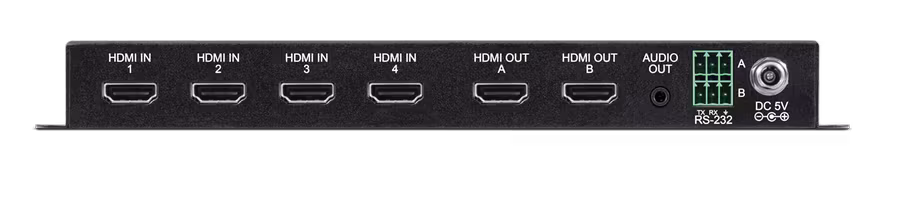

| Input: | 4x HDMI [4x HDMI Uncompressed AV and Data] 1x Phoenix (3 pin) [1x Console control RS-232] 1x USB Type B [1x Service port Propriety Data] |
| Output: | 2x HDMI [2x HDMI Uncompressed AV and Data] 1x 3.5mm Stereo mini-jack [1x Analogue Audio Stereo(L/R)] 1x Phoenix (3 pin) [1x Display control RS-232] |
| | |
| PSU: | 5V/2.6A |
| Dimensions: | 231mm [W] x 108mm [D] x 25mm [H] |
| Net. Weight: | 620g |
| Gross Weight: | 1550g |
