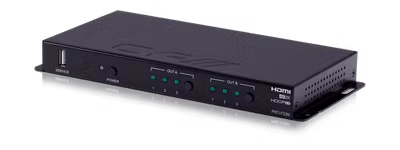

PRO-F32M
Den här kombinerade Transceivern/Matrisen gör det möjligt att skicka upp till tre HDMI signaler ( 2 st över 18 Gbps HDMI och 1 st 10.2 Gbps över Fiber ) till en eller båda av utgångarna ( 1 st 18 Gbps HDMI och 1 st 10.2 Gbps Fiber ). Den optiska fiber in/ut-gången klarar upp till 300 meter vardera och använder sig av LC kontakter.
Enkel integration och kompatibilitet uppnås genom att använda denna i kombination med en PRO-F12TX (sändare) och/eller en PRO-F21RX (mottagare).
PRO-F32M stödjer upplösningar upp till 4K@60Hz (4:4:4, 8-bit Deep Color)(16-bit Deep Color upp till 1080p@60Hz), HDR, HD ljudformat och andra funktioner definierade i HDMI 2.0 Standarden.
HDMI källor med en bandbred högre än 10.2 Gbps kommer automatiskt att skalas ner genom att bearbeta krominansen och/eller bit-djupet för att kunna skickas över fiberkablarna.
6 st fördefinierade EDIDs och 2 externa EDID val finns tillgängliga för EDID hantering.
Styrning av enheten kan skötas genom frontpanelen, RS-232, Telnet, WebGUI samt den medföljande fjärrkontrollen.
This combined Transceiver/Matrix enables the routing of up to three HDMI input signals (2 x 18Gbps HDMI inputs and 1 x 10.2Gbps optical fiber input) to any of the two outputs (1 x 18Gbps HDMI and 1 x 10.2Gbps optical fiber). The optical fiber input and output both support transmission distances up to 300 meters and use paired LC connectors. Simple integration and compatibility is achieved when the units are paired with the PRO-F12TX and PRO-F21RX.
The PRO-F32M supports resolutions up to 4K@60Hz (4:4:4, 8-bit), 16-bit Deep Color up to 1080p@60Hz, HDR (High Dynamic Range), HD audio formats and other features defined by the HDMI 2.0 specification. HDMI sources with bandwidth higher than 10.2Gbps are automatically chroma and/or bit-depth subsampled for transmission over the fiber output. Six pre-defined internal EDIDs and two external EDID selections are available for EDID management. The unit provides intuitive front panel controls as well as RS-232, Telnet, WebGUI and IR remote control options.
Features:
HDMI with 3D & 4K@60Hz with HDR support
DVI 1.0 compliant with the use of an HDMI-DVI adapter
HDCP 2.2 and 1.x compliant
Supports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)
Supports 16-bit Deep Color up to 1080p@60Hz
2 x HDMI (18Gbps) input and 1 x fiber (10.2Gbps, LC pair, multi-mode) input
1 x HDMI (18Gbps) output and 1 x fiber (10.2Gbps, LC pair, multi-mode) output
HDMI sources with bandwidth higher than 10.2Gbps are automatically chroma and/or bit-depth subsampled for transmission over the fiber outputs
Fiber transmission distances of up to 300m
3×2 matrix routing between all inputs and outputs
Supports pass-through of audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
Comprehensive EDID management support including 6 pre-defined internal EDIDs and 2 external EDIDs
Supports control via front panel, WebGUI, Telnet, RS-232, and IR remote
Specifications:
| Inputs: | 2x HDMI [2x HDMI Uncompressed AV and Data] 1x SFP + [1x LC/PC-LC/PC Duplex MM OM3] 1x RJ45 [1x IP Control] 1x 3.5mm Stereo mini-jack [1x RS-232] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] 1x USB Type A [1x Service Port Propriety Data] |
| Outputs: | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x SFP + [1x LC/PC-LC/PC Duplex MM OM3] |
| PSU: | 5V/2.6A |
| Dimensions: | 117mm [W] x 231mm [D] x 25mm [H] |
| Net Weight: | 720g |
| Gross Weight: | 1170g |
