500830
Muxlab 500830 är en testsignalsgenerator för HDMI 2.0 och SD/HD/3G-SDI som kan generera en upplösning upp till 4K@60 Hz (4:4:4 Chroma subsampling).

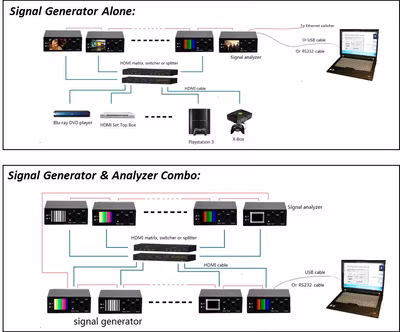

Man kan använda den enskilt eller tillsammans med en 500831 Signal Analysator
This Signal Generator is a portable test tool that is able to generate SD/HD/3G SDI and HDMI 2.0 test patterns in a full range of resolutions up to 4K@ 60Hz (4:4:4). The unit assists users in validating the capabilities and proper operation of their sink devices. The user may select from various test pattern, resolutions, refresh rates, color spaces and other related parameters. When used with the 500831 Signal Analyzer, a useful set of cable connectivity/quality tests, and device compatibility tests can be performed to help identify problems. The device is an exceptional tool at an attractive price for any AV engineer/developer, Integrator and installer.
The Signal Generator is a portable device which can be used anytime you need it and anywhere, making it an invaluable tool. The unit supports an internal rechargeable Lithium-ion battery, allowing the device to be operated autonomously for up to 5 hours per change.
Features
Portable Signal Generator – for autonomous operation anytime and anywhere!
Supports up to 5 hours of operation on a single change via an internal rechargeable Lithium-ion battery
Supports HDMI up to 4K/60 & 3D, and 3G-SDI
Supports RGB4:4:4, YUV4:2:2, YUV4:2:0 & Deep Color
Supports 33 preset patterns & 32 preset resolutions
3” LCD panel for pattern preview & menu settings
Supports 7 audio sample rates
Supports HDCP on/off, for testing HDCP 2.2 & 1.4
Supports EDID management
Locally or remotely managed via RS232 or USB
Supports an RS232 cascade for management
Free Windows management software
The Signal Generator is a portable device which can be used anytime you need it and anywhere, making it an invaluable tool. The unit supports an internal rechargeable Lithium-ion battery, allowing the device to be operated autonomously for up to 5 hours per change.
Features
Portable Signal Generator – for autonomous operation anytime and anywhere!
Supports up to 5 hours of operation on a single change via an internal rechargeable Lithium-ion battery
Supports HDMI up to 4K/60 & 3D, and 3G-SDI
Supports RGB4:4:4, YUV4:2:2, YUV4:2:0 & Deep Color
Supports 33 preset patterns & 32 preset resolutions
3” LCD panel for pattern preview & menu settings
Supports 7 audio sample rates
Supports HDCP on/off, for testing HDCP 2.2 & 1.4
Supports EDID management
Locally or remotely managed via RS232 or USB
Supports an RS232 cascade for management
Free Windows management software
