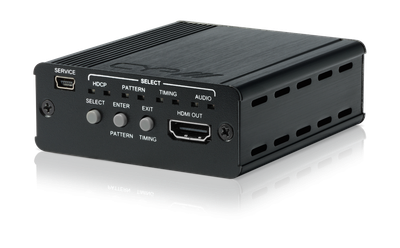

XA-2
XA-2 är en kompakt och smidig HDMI "mönster generator" för att testa och felsöka HDMI enheter.
XA-2 kan ställas in med t.ex:
6 olika upplösningar,
4 olika test mönster,
HDCP ( 1.4, 2.2, utan HDCP )
m.m

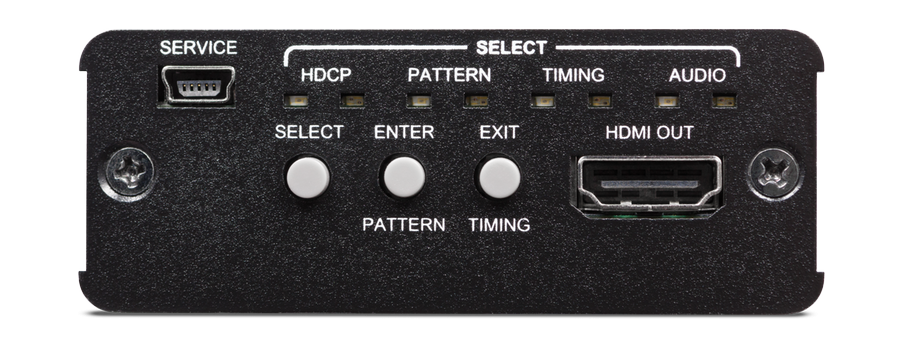

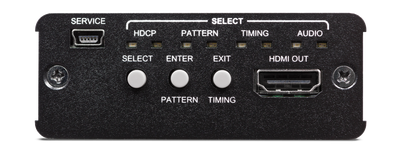

The XA-2 is an advanced yet compact and convenient pattern generator for testing and troubleshooting HDMI devices. There are 6 resolution settings covering 4K Ultra HD and Full HD resolutions, 4 test patterns, HDCP (1.4, 2.2 and non-HDCP), and 3 audio settings each providing a large array of test signals. With simple to use control via buttons on the front panel, and LED indicators for quick viewing of the current status, this pattern generator is a must have tool for any professional AV integrator.
Features:
- HDMI 2.0, HDCP 2.2 and DVI compliant
- Generates HDMI resolutions up to 6Gbps 4K2K@60Hz
- Generates HDCP v1.4, HDCP v2.2 and non-HDCP signals
- Resolutions supported: 720p@60, 1080p@60, & 4K@30/60
- Supports external analogue stereo and optical digital audio inputs
- Video bandwidth support: 18Gbps
Specifications:

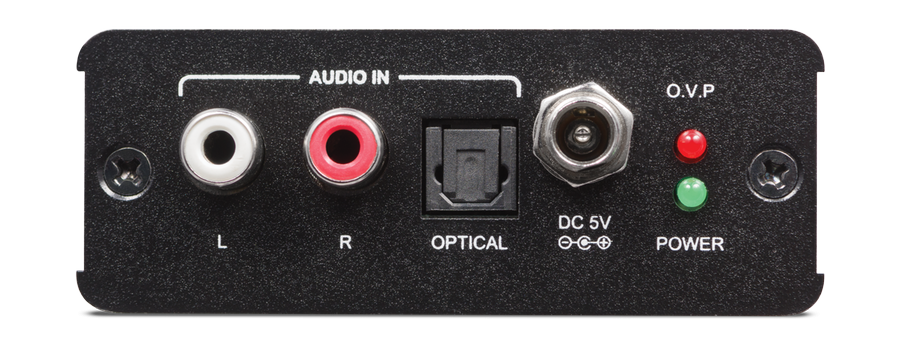

| Input: | 2x RCA [1x Analogue audio Stereo (L/R)] 1x Toslink [1x Optical 2 Channel LPCM] 1x USB Mini B [1x Service Port - Propriety Data] |
| Output: | 1x HDMI [1x HDMI Uncompressed AV and Data] |
| | |
| PSU: | 5V/2.6A |
| Dimensions: | 87mm [W] x 78mm [D] x 30mm [H] |
| Net. Weight: | 202g |
| Gross Weight: | 500g |
