500301

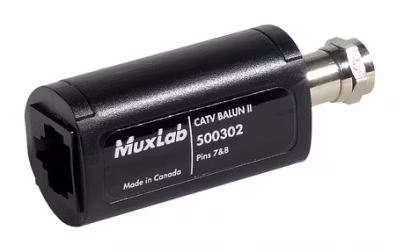

En splitter eller hub om man så vill för att skicka vanlig antennsignal (kabeltv eller marksänt) i vanlig Cat5/6 kabel. Med denna kan du splitta och distribuera en vanlig antennsignal till 8 olika platser med hjälp av vanliga näverkskablar. I ändan på kabeln sätter du sedan en Muxlab 500302 CATV Balun, antenn i Cat5 kabel och kopplar in den i tv:n eller digitalboxen.

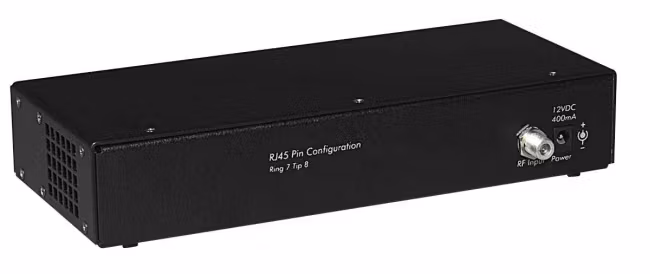

The MuxLab CATV Hub allows a terrestrial broadband RF video signal to be distributed to multiple RF receivers via Cat5 unshielded twisted pair cable. The CATV Hub is available in two (2) configurations; Eight (8) ports: 500300/500301 and sixteen (16) ports: 500303/500304.
The CATV Hub works in conjunction with MuxLab’s passive CATV Balun (500302), or Shielded CATV Balun (500306) and other RF video equipment for a more complete cabling solution. The CATV Hub has a 900 MHz bandwidth and supports broadband video, broadband Internet and Digital Cable.
The product features built-in gain amplification and port buffering and may be used in conjunction with standard RF distribution equipment for larger installations. Applications include; residential, apartment, condominiums, hotels, offices, schools, hospitals, trading floors.
500300 – 8 port (US)
500301 – 8 port (EU and UK)
500303 – 16 port (US)
500304 – 16 port (EU and UK)
Features
- 900 MHz bandwidth
- Built-in RF amplfier
- Bi-directional transmission
- Works with other standard RF video equipment
- Compact design
- Centralised cabling for greater control
- Cost savings - eliminate costly coaxial cable
- Quicker moves, adds and changes
- Neater wiring
