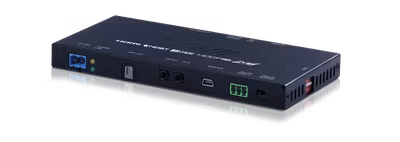

PUV-1730PLTX-AVLC
Den här sändaren gör det möjligt att skicka videosignaler med en upplösning upp till 4K UHD med 10/12-bit HDR10 och/eller Dolby Vision tillsammans med HD ljud, 2 vägs IR, RS-232 och PoH( Power over HDBaseT) upp till 70 meter.
Alla ljud, video, styrnings- signaler och ström levereras över en enkel CAT6a/7 kabel vilket gör det tämligen smidigt att installera. Med OAR( Optical Audio Return) kan man även få ljudet ifrån displayen tillbaka till sändarplatsen där man kan bryta ut ljudet i form av en optisk utgång.
Trots bandbredds begränsningen som HDBaseT tekniken har ( 10.2 Gbps ) så klarar denna sändaren av att leverera ljud/bild signaler och övriga funktioner som kräver upp till 18 Gbps genom att använda CYP///s AVLC teknik. Detta gör att man kan skicka full 6G 4K signaler utan att tumma på kvalitén så att det syns.
Värt att nämna är att denna tekniken bara aktiveras vid behov, dvs om man väljer att köra 4K UHD 4:4:4 8-bit subsampling. Om man istället har en källa med 1080p t.ex så blir det ingen komprimering alls på kvalitén.
The new PUV-1730LTX-AVLC Transmitter enables video resolutions up to 4K UHD including 10/12-bit HDR10 & Dolby Vision, to be transmitted along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) signals from a distance of 70m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable up to 70m. Using the OAR (Optical Audio Return) feature, audio can be received from the display and de-embedded from this Transmitter.
Despite the 10.2Gbps limitation of HDBaseT™ technology, this groundbreaking product enables data rates of up to 18Gbps to be received using AVLC (Adaptive Visually Lossless Compression) Technology. The receiver enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (Including Dolby Vision) to be received over distance from a compatible transmitter. The result is a perfect 6G 4K visually lossless image delivered to the display screen.
Features:
- HDBaseT™ convergence: High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
- Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input
- AVLC (Adaptive Visually Lossless Compression)
- AVLC Features manual selection between High Quality and Standard compression (Useful for longer cable runs)
- Supports 10-bit and 12-bit HDR (High Dynamic Range)
- Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
- Supports Deep Colour input and output up to 12-bit
- Supports CEC Bypass
- OAR (Optical Audio Return)
- 4K 3G Timings and 1080p up-to 70 Metres, 4K 6G Timings upto 35 Metres
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Supports 3D signals
Specifications:

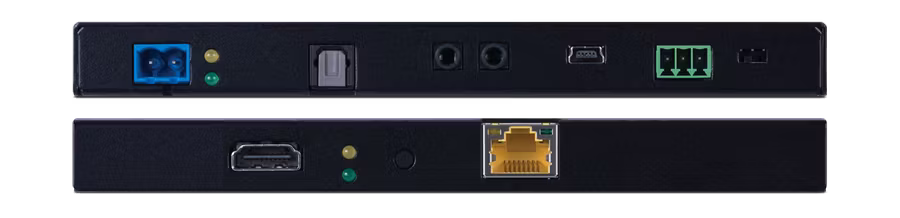

| Inputs: | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] 1x Phoenix (3 pin) [1x RS-232] |
| Outputs: | 1x RJ45 [1x HDBaseT HDMI & Propriety Data] 1x Toslink [1x OAR Optical audio DTS / Dolby Digital / 2 Channel LPCM] |
| PSU: | 48V/0.83A |
| Dimensions: | 165mm [W] x 80mm [D] x 20mm [H] |
| Net Weight: | 335g |
| Gross Weight: | 2000g |
