PUV-1620S-TX
The PUV-1620S-TX is designed to scale and convert HDMI and PC video, with optional analogue audio embedding, for extension over long distances to a compatible PUV-1600 Series HDBaseT Receiver. The HDMI input supports resolutions up to 4K@60Hz (4:2:0) and the VGA input supports resolutions up to 1080p@60Hz/WUXGA@60Hz. The scaled HDBaseT output supports resolutions from 640×480@60Hz up to 4K@60Hz (4:2:0, 8-bit) and provides the ability to adjust the image with a number of fine tuning options including: contrast, brightness, hue, saturation, sharpness, noise reduction, and RGB levels.
In addition, this unit supports 7.1 channel LPCM digital audio as well as advanced Bitstream and HD Bitstream audio formats via the HDMI input, or analog stereo audio may be embedded from the stereo mini-jack connector. Shortcut keys are provided to quickly change the output resolution to 1080p or XGA when needed for quick connection to a display or for troubleshooting purposes.
The unit can be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Receiver, which allows for greater flexibility in commercial installations. The unit can be controlled via front panel buttons with a comprehensive OSD.
Features:
- HDCP 1.1 and HDCP 2.2 compliant
- 1 x HDMI and 1 x PC (VGA) input
- 1 x Analogue Stereo Audio input
- 1 x HDBaseT output
- HDMI input supports input resolutions up to 4K@60Hz
- VGA input supports resolutions up to 1080p@60Hz/WUXGA@60Hz
- Scaled HDBaseT output supports resolutions from 640×480@60Hz up to 4K@60Hz (4:2:0, 8-bit)
- HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
- Simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K
- Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats
- Analogue stereo audio Em-bedding support via Stereo mini-jack (3.5mm)
- Unit may be powered locally or via 48V PoH from a compatible HDBaseT Receiver (PUV-1600 Series)
- Controlled via front panel buttons with comprehensive OSD
Specifications:

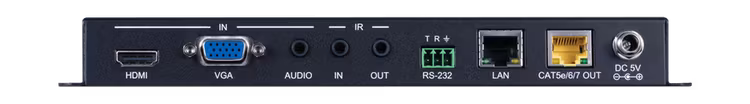

| Inputs | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x 15pin Dsub [1x VGA RGBHV] 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)] 1x Phoenix (3 pin) [1x RS-232] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] 1x RJ45 [1x LAN Serving] 1x USB Type A [1x Service Port Propriety Data] |
| Outputs | 1x RJ45 [1x HDBaseT HDMI & Propriety Data] 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] |
| POE PSU: | PoH |
| PSU: | 5V / 3.2A |
| Dimensions | 158mm [W] x 231mm [D] x 25mm [H] |
| Net Weight | 1000g |
| Gross Weight | 1500g |
