PUV-1602TXWP

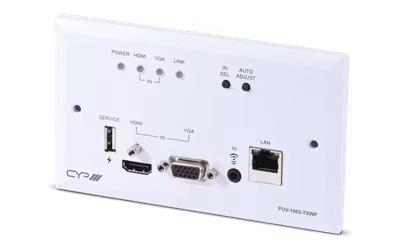

PUV-1602TXWP är en sändare som skall monteras på vägg.
Skickar okomprimerade HDMI signaler över en enkel CAT5e/6/7 kabel. Med i kabeln kan man även köra RS-232, 2 vägs IR och "Power over Cable" (PoC) utan problem. Med fräsha kablar så kan man skicka dessa signaler upp till 100 meter. Eftersom den uppfyller 5Play så får man även med 100Mbit/s Ethernet-trafik också.
The PUV-1602TXWP Wallplate Transmitter is a HDMI/VGA switch which allows uncompressed HDMI and VGA signals to be transmitted over a Single CAT5e/6/7 cable. This solution has the added features of analogue audio em-bedding, RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres to a compatible PUV 1600 Series Receiver.

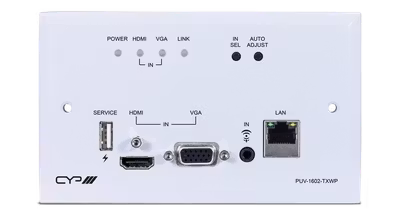

This unit also supports automatic input detection between the HDMI and the VGA inputs using hot plug detection, offering the user 'hands free' control of the device. Despite the 10.2Gbps bandwidth limitation of HDBaseT this clever transmitter will automatically convert signals of higher bandwidths ensuring any HDMI 4K signal can be passed through the HDBaseT system. The unit also features push button control on the front of the panel. The unit is powered by PoH supplied by a compatible PUV-1600 series receiver. The wall plate is designed to integrate within a standard UK double gang back box.
Supports all v1.4 HDMI resolutions plus 4K
Supports uncompressed video/audio up to 10.2Gbps
Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
HDMI, HDCP, & DVI compliant
Uncompressed data transfer over single CAT cable (60m @ 1080p cat5e/6)
Uncompressed video 1080p, 60Hz, 48bits
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
Supports: HDMI, PoC & Control (2-way IR)
1x RJ45 [1x HDBaseT Lite HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x (RX) Infra Red Sensor]
Outputs:
1x 3.5mm Stereo mini-jack [1x (TX) Infra Red Emitter]
1x HDMI [1x HDMI (RX) Uncompressed AV and Data]
Dimensions:145mm [W] x 85mm [D] x 39mm [H]
Net Weight:160g
Gross Weight:660g
This unit also supports automatic input detection between the HDMI and the VGA inputs using hot plug detection, offering the user 'hands free' control of the device. Despite the 10.2Gbps bandwidth limitation of HDBaseT this clever transmitter will automatically convert signals of higher bandwidths ensuring any HDMI 4K signal can be passed through the HDBaseT system. The unit also features push button control on the front of the panel. The unit is powered by PoH supplied by a compatible PUV-1600 series receiver. The wall plate is designed to integrate within a standard UK double gang back box.
Features:
HDCP 2.2 CompliantSupports all v1.4 HDMI resolutions plus 4K
Supports uncompressed video/audio up to 10.2Gbps
Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
HDMI, HDCP, & DVI compliant
Uncompressed data transfer over single CAT cable (60m @ 1080p cat5e/6)
Uncompressed video 1080p, 60Hz, 48bits
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
Supports: HDMI, PoC & Control (2-way IR)
Specifications:
Inputs:1x RJ45 [1x HDBaseT Lite HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x (RX) Infra Red Sensor]
Outputs:
1x 3.5mm Stereo mini-jack [1x (TX) Infra Red Emitter]
1x HDMI [1x HDMI (RX) Uncompressed AV and Data]
Dimensions:145mm [W] x 85mm [D] x 39mm [H]
Net Weight:160g
Gross Weight:660g
