CYP/// HDBaseT Lite Wallplate mottagare. 4K, PoC, RS232, IR, 60 meter

2 800 kr

1 400 kr



PU-515PL-WPRX

HALVA PRISET, sista exet

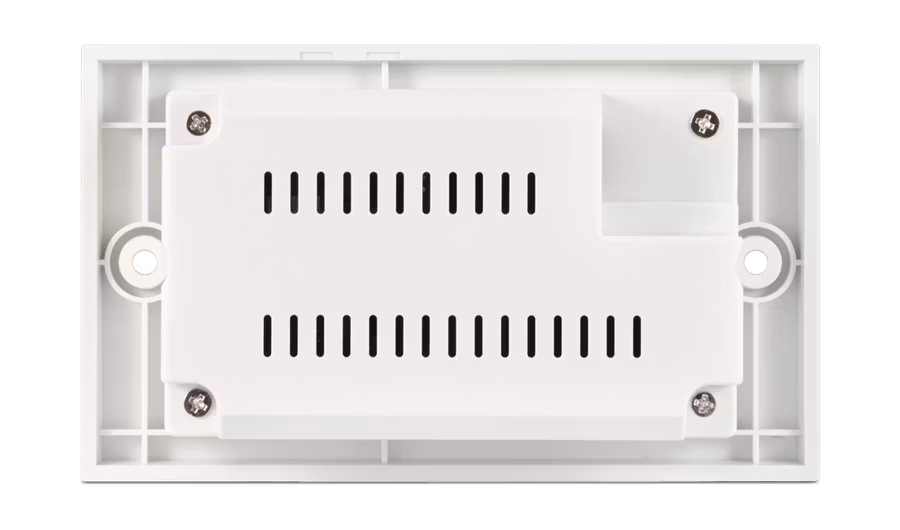

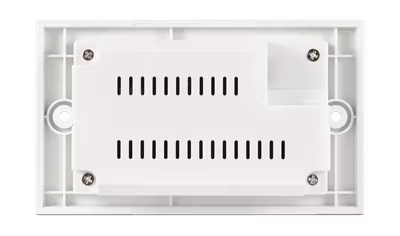

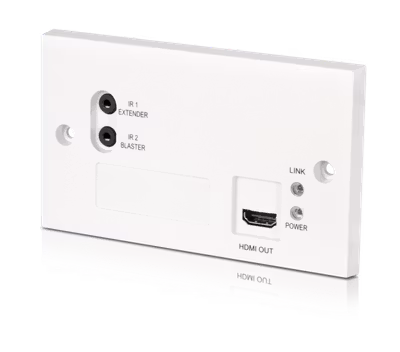

PU-515PL-WPRX är en mottagare som skall monteras på vägg.

Fungerar ihop med sändare:

CYP/// HDMI över Cat Lite. 4K, PoE, RS232, IR, 60 meter

Tar emot okomprimerade HDMI signaler över en enkel CAT5e/6/7 kabel. Med i kabeln kan man även köra RS-232, 2 vägs IR och "Power over Cable" (PoC) utan problem. Med fräsha kablar så kan man skicka dessa signalerna upp till 60 meter.


The PU-515PL-WPRX allows uncompressed HDMI signals, control and power to be transmitted over a Single CAT5e/6/7 cable. This device allows the distribution of Video, Audio, Power over Cable (PoC) and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 60 metres. ?This wall plate variant of the PU-515PL-RX receiver enables seamless integration into a standard double-gang back box.

Features:


HDCP 2.2 Compliant
Supports all v1.4 HDMI resolutions plus 4K
Supports uncompressed video/audio up to 10.2Gbps
Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
HDMI, HDCP, & DVI compliant
Uncompressed data transfer over single CAT cable (60m @ 1080p cat5e/6)
Uncompressed video 1080p, 60Hz, 48bits
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
Supports: HDMI, PoC & Control (2-way IR)

Specifications:

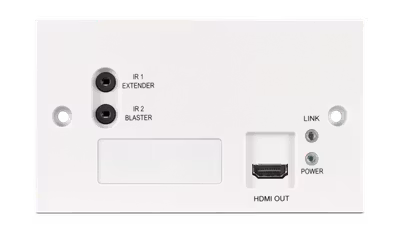

Inputs:
1x RJ45 [1x HDBaseT Lite HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x (RX) Infra Red Sensor]

Outputs:
1x 3.5mm Stereo mini-jack [1x (TX) Infra Red Emitter]
1x HDMI [1x HDMI (RX) Uncompressed AV and Data]

Dimensions:145mm [W] x 85mm [D] x 39mm [H]
Net Weight:160g
Gross Weight:660g
