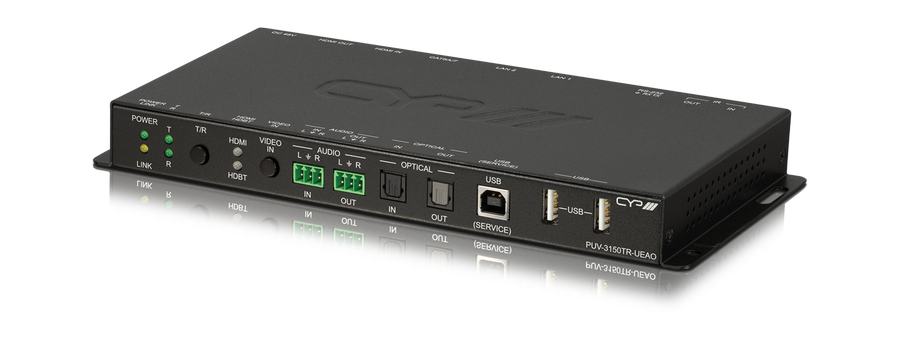

PUV-3150TR-UEAO
The PUV-3150TR-UEAO 4K UHD+ HDMI over HDBaseT Transceiver uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio as well as Ethernet and control via a single run of Cat.6A/7 cable over distances of up to 100 meters.
This transceiver unit can be configured to function as either a transmitter or a receiver, enhancing the flexibility of any installation. Multiple control and data signals may also be transmitted along with the audio and video, including bi-directional IR, RS-232, USB 2.0, and Gigabit Ethernet.

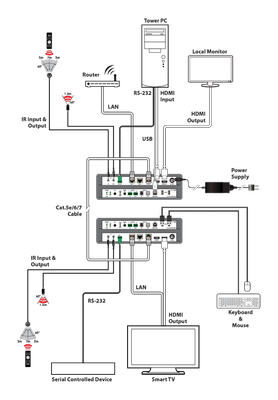

When two of these transceivers are used together, 2 USB 2.0 host (Type-B) connections are available (1 on the transmitter, 1 on the receiver) which will connect the host to devices on up to 4 USB 2.0 (Type-A) ports (2 on the transmitter, 2 on the receiver) forming a highly flexible KVM extension configuration (Note: Only 1 USB host may be active at a time). HDBaseT3 has high USB peripheral compatibility, supporting many types of USB devices.

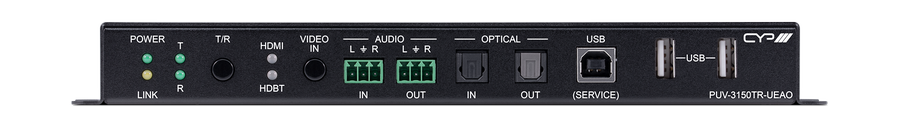

This transceiver is ideal for use in any video extension scenario, but it excels when latency-free, uncompressed video is critical, such as medical installations, live conferences, and education. This unit is controllable via front panel buttons.
Features:
- Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
- HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
- HDBaseT extends video, audio and data over a single Cat.6A/7 cable and can reach distances up to 100m/328ft
- HDBaseT feature support: HD Video and Audio, Gigabit Ethernet, Bi-directional PoH, Bi-directional audio (optical and analog), and Control (bi-directional USB/IR/RS-232 pass-through)
- 2 USB 2.0 Type-A device ports and 1 USB 2.0 Type-B host port
- Selectable HDMI or HDBaseT input in receiver mode
- HDMI output functions as a local monitor when in transmitter mode
- Can either receive or provide power via PoH over the HDBaseT connection allowing for flexible installation options
Specifications:

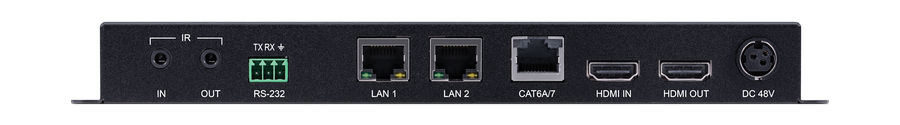

| Inputs | 1x HDMI [1x HDMI Uncompressed AV and Data] 2x RJ45 [2x LAN Serving] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] 1x RJ45 [1x HDBaseT 3 (shared port - TX mode HDMI & Propriety Data] 1x Phoenix (3 pin) [1x RS-232] 1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Input] 1x Toslink [1x Optical 2 Channel LPCM] 1x USB Type B [1x Service Port Propriety Data] 2x USB Type A [2x USB pathway Propriety Data] |
| Outputs | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] 1x RJ45 [1x HDBaseT 3 (shared port - RX mode in) HDMI & Propriety Data] 1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Output] 1x Toslink [1x Optical 2 Channel LPCM] |
| POE PSU: | PoH |
| PSU: | 48V/0.83A |
| Dimensions | 231mm [W] x 108mm [D] x 25mm [H] |
| Net Weight | 700g |
| Gross Weight | 1620g |
