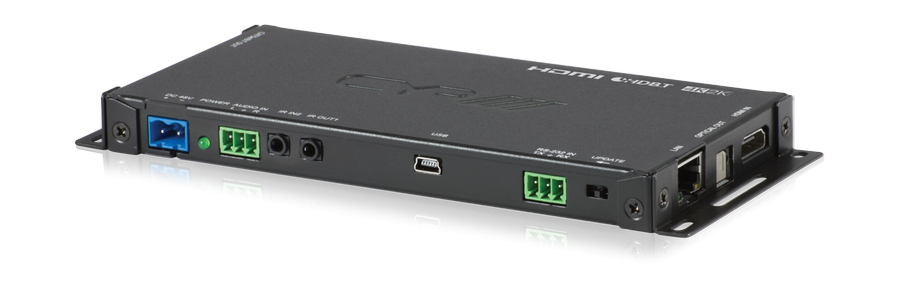

PUV-2100RX-AVLC
Här har vi en HDMI över HDBaseT 2.0 mottagare med AVLC (Adaptive Visually Lossless Compression) teknik.
Tekniken gör det möjligt att ta emot upp till 4K UHD med HDR ( 4:4:4, 8-bit ) över en Cat6a/7 kabel upp till 100 meter ifrån sändaren.
Enheten stödjer den nyare standarden av HDCP 2.2 och HDMI 2.0 men är även bakåtkompatibel med HDCP 1.x och HDMI 1.x standarden.
Trots den traditionella bandbredds begränsningen i HDBaseT som är på 10.2 Gbps så kan man köra 4K UHD (4:4:4, 8-bit) med hjälp av AVLC-tekniken samt RS-232, IR, Ethernet och fler-kanals ljud.
Den här enheten strömförsörjs genom nätverkskabeln ifrån sändaren och kan inte strömförsörjas lokalt.
The PUV-2100RX-AVLC is a HDBaseT 2.0 Receiver capable of receiving 4K video with HDR and high bitrate audio over a single Cat.6a/7 cable at distances of up to 100m (328 feet). This Receiver complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be received and processed using AVLC (Adaptive Visually Lossless Compression) technology when connected to a compatible AVLC Transmitter or the OUTX-2100-AVLC Matrix Board. This receiver can also pass RS-232, IR, Ethernet, and multiple audio streams across the same cable that carries the video signal.
The selectable Audio Return Channel (ARC)/bi-directional optical audio feature allows audio generated by an ARC-enabled TV to be to be sent back to the Transmitter and output over the optical output for local playback, or for optical audio to be exchanged bi-directionally between the Transmitter and Receiver. This Receiver is powered directly by the connected Transmitter, via 48V PoH (Power over HDBaseT), eliminating the need for a separate power supply.
Features:
- HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
- Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
- Supports Deep Color input and output up to 12-bit
- Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
- Supports CEC bypass
- HDBaseT output transmits video, audio and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat.6a/7
- HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH, bi-directional optical audio and Control
- (bi-directional IR/RS-232 pass-through)
- Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for sources up to 18Gbps (600MHz) to be sent to a compatible Receiver with no loss of visual quality
- The AVLC feature allows manual selection between High Quality Mode (Full bandwidth) and Standard Mode (Lower bandwidth, useful for longer cable runs with 4K sources)
- Bi-directional optical audio extension support
- Supports HDMI DDC bus clock stretching for improved source compatibility
- Performs TMDS re-clocking and signal re-generation for improved signal integrity
- Supports standard 48V PoH from Transmitter to Receiver (compatible Receivers only)
Specification:

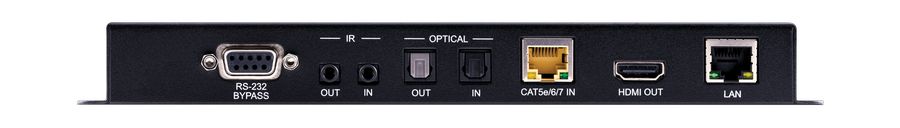

| Inputs | 1x RJ45 [1x HDBaseT2 HDMI & Propriety Data] 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM / Dolby Digital Plus] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] 1x 9pin Dsub [1x Bypass RS-232 Data] 1x RJ45 [1x LAN Serving] 1x USB 3 Type B [1x Service Port Power & Data] |
| Outputs | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM / ARC Output (Optical) / Dolby Digital Plus] 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] |
| PSU: | PoH |
| Dimensions | 100mm [W] x 64mm [D] x 26mm [H] |
| Net Weight | 180g |
| Gross Weight | 300g |
