500424
Här har vi en 1 till 4 distributions splitter som tar en HDMI signal och skickar det vidare till upp tilll 4 HDBaseT mottagare. Det finns även en lokal HDMI utgång som man kan använda för att serie-koppla upp till 4 andra splitters.
Lämplig mottagare är 500454-RX.

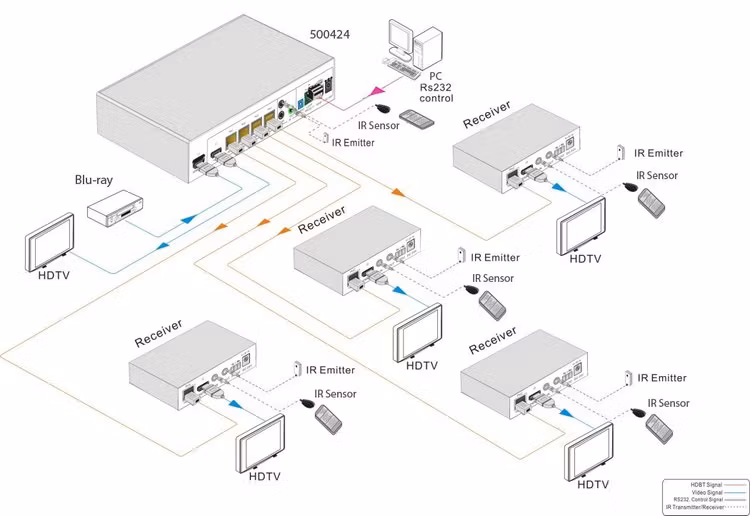

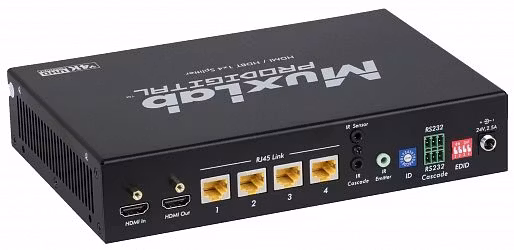

The HDMI/HDBT 1×4 Splitter, UHD-4K is a HDBT Splitter accepting 1 HDMI input and distributing to 4 HDBT outputs, plus 1 HDMI output for local monitoring or for cascading up to four other splitters.
The HDMI audio video splitter allows uncompressed 4K @ 30Hz HDMI, RS232 and IR signals to be transmitted over a single CAT5e/6 cable up to 131ft (40m) and a 1080p signal up to 230ft (70m). The HDMI audio video splitter is also capable of bi-directional IR transmission and EDID management.
The 500454-RX HDBT Receiver is recommended as a companion device for the extended HDBT signal.
Typical Applications
- Commercial and residential AV systems
- Classroom training systems
- Digital signage
- Boardroom systems
- Collaborative PC systems
- Medical information systems
Features
- Distribute one HDMI 1.4 & 3D source to four displays
- Supports up to 4K @ 30Hz (4:4:4)
- HDCP 1.4 compliant
- Supports PCM, Dolby True HD, and DTS-HD Master Audio
- Supports RS232 and IR transmission for remote control
- EDID management
- Connectors on rear for neater cabling
- LED diagnostics
