500457
Muxlab 500457 är ett kit för att skicka HDMI 4K 30Hz och USB 2.0 upp till 100 meter över en enkel Cat5e/6 kabel.
Mottagaren har 4 st USB utgångar.

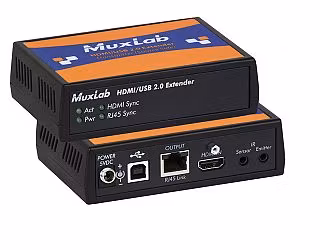

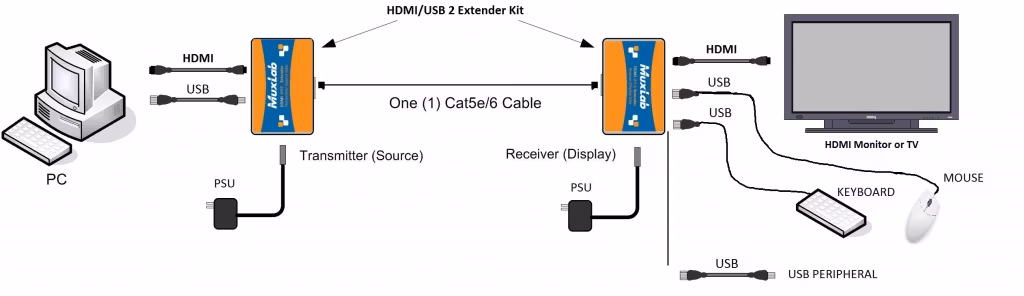

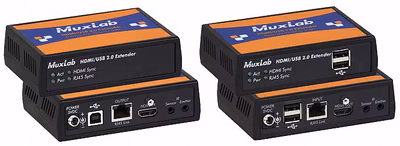

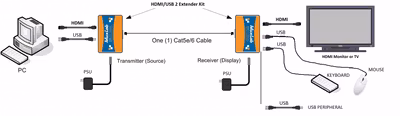

The HDMI/USB 2.0 Extender Kit allows one HDMI 1.4 and one USB 2.0 channel to be transmitted up to 330ft (100m) at all resolutions up to 1920×1200 @ 60Hz via one (1) Cat 5e/6 cable in a point-to-point configuration. The receive side includes a 4-port USB 2.0 hub, supporting KVM applications. Bi-directional IR transmission is supported.
Supports HDMI 4K @ 30fps (4:4:4)
Supports HDMI 4K @ 60fps (4:2:0)
Uncompressed signal transmission
USB 2.0 (250Mbps max)

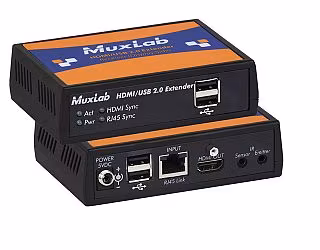

Receiver side includes a 4-port USB hub, supporting KVM applications
Up to 330ft (100m) over Cat5e/6 at 4K30
Supports bi-directional IR transmission
Features
Supports HDMI 4K @ 30fps (4:4:4)
Supports HDMI 4K @ 60fps (4:2:0)
Uncompressed signal transmission
USB 2.0 (250Mbps max)
Receiver side includes a 4-port USB hub, supporting KVM applications
Up to 330ft (100m) over Cat5e/6 at 4K30
Supports bi-directional IR transmission
