500306
Om du råkar ha ett draget nätverk av skärmade nätverkskablar (Cat 5e/6) i huset så kan man med hjälp av denna balunen skicka RF signaler ( det vill säga vanliga antenn signaler ) genom dessa istället för att använda den vanliga koaxial kabel.
Balunerna säljs separat men arbetar i par vilket betyder att du behöver köpa minst 2 för att få en fungerande förbindelse.
Dessa kan även kombineras med CATV hub 8 portar eller CATV hub 16 portar för att distribuera signalerna till fler platser.

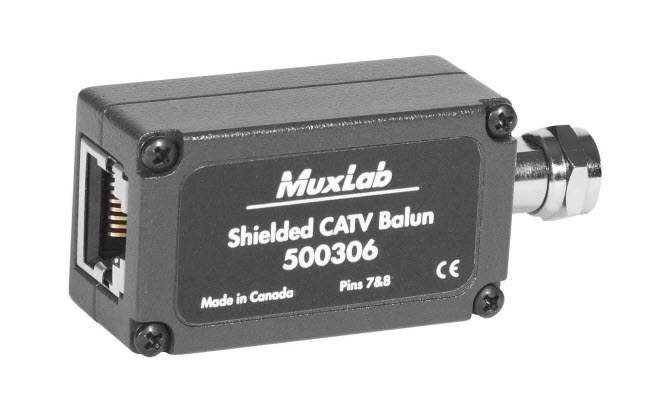

The Shielded CATV Balun (500306) allows RG6 coaxial cable to be replaced by Cat 5e/6/7 STP or UTP cable in the terrestrial RF environment.
Used in pairs, the Shielded CATV Balun allows broadband CATV equipment to be integrated into a structured cabling system thereby allowing CATV equipment to be moved or added to any convenient modular wall outlet. When used with Cat 5e/6/7 shielded twisted pair cable, the connection supports greater RF ampliflication and therefore greater distance with less EMI/RFI egress versus other UTP CATV baluns.
The Shielded CATV Balun also works in conjunction with MuxLab’s CATV Hub (500300/303) for a total cabling solution
Features
Bandwidth up to 900 MHz including Internet, digital cable
Supports Cat5e/6/7 STP and UTP
Fits side-by-side on most RF splitters
Lower EMI /RFI egress when STP is used
Cast aluminum enclosure for maximum EMI/RFI shielding
Low insertion loss
