500101
Med den här balunen finns det möjlighet att skicka en kompositvideo signal upp emot 3000 feet ( ca 914 meter ). Balunen strömförsörjs genom kamerans nätadapter. Denna artikeln hanterar 24 Volt AC medans Active CCTV sändar balun 12 Volt DC hanterar 12 Volt.

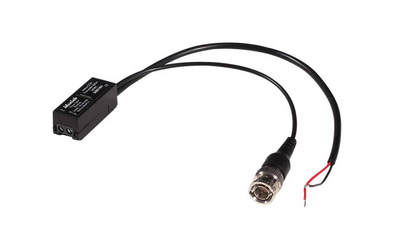

The Active CCTV Transmitter Balun (500100, 500101) provides enhanced distance performance for a single CCTV video channel via Cat5 unshielded twisted pair (UTP) cable. The balun is installed at the CCTV camera and is powered by the camera power supply. There are two (2) models: 500100 for 12VDC cameras and 500101 for 24VAC cameras. Maximum distance supported ranges from 0 to 3,000 ft via Cat5 UTP when connected to passive CCTV baluns at the receiver. Active CCTV Transmitter Balun features ground loop isolation and manual gain compensation adjustment based on cable length. Applications: Video enhancement for color, sharpness and brightness. Ground loop sensitive installations. Marginal cabling installations.
Features:
Low power consumption
Ground loop isolation
Fits inside CCTV dome cameras and back boxes
Derives power from camera power supply
Gain compensation switch for 500 to 3000 feet
Works with other MuxLab CCTV baluns
Cable strain relief
Features:
Low power consumption
Ground loop isolation
Fits inside CCTV dome cameras and back boxes
Derives power from camera power supply
Gain compensation switch for 500 to 3000 feet
Works with other MuxLab CCTV baluns
Cable strain relief
