CA-COMP100R
Här är mottagaren som används tillsammans med CA-COMPAT för längder upp till 100m.

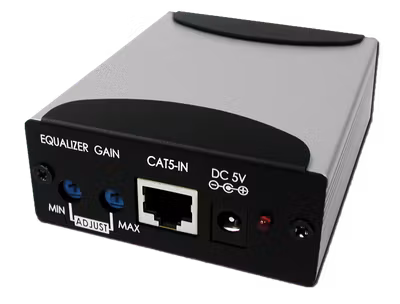

The CA-COMP100R is a PC/HD and audio receiver (rx) over CAT5 solution.
CA-COMP100R can receive Component or RGBHV signals through CAT-5 Cables up to a distance of 100m - will require a transmitter unit (CA-COMPAT).
Supports HD / YcbCr / YpbPr format
Supports CAT-5 / CAT-5E / CAT-6 cable
Supports High Definition (HD) input source up to 1080p
Supports PC input source up to UXGA
Output signal resolution follows input
Quick & Easy installation

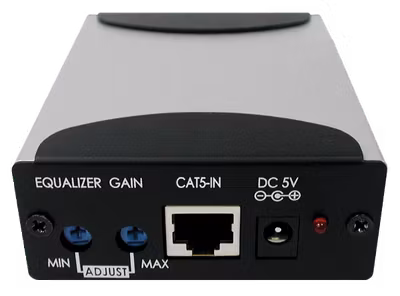

Inputs: 1x RJ45 [1x CAT Audio & Video plus Propriety Data]

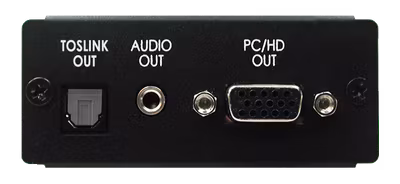

Outputs
1x 15pin Dsub [1x RGBHV / YPbPr Component / YCbCr Component]
1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
PSU:5V/1A
Dimensions:95mm [W] x 75mm [D] x 32mm [H]
Net Weight:200g
Gross Weight400g
CA-COMP100R can receive Component or RGBHV signals through CAT-5 Cables up to a distance of 100m - will require a transmitter unit (CA-COMPAT).
Features:
Supports HD / YcbCr / YpbPr format
Supports CAT-5 / CAT-5E / CAT-6 cable
Supports High Definition (HD) input source up to 1080p
Supports PC input source up to UXGA
Output signal resolution follows input
Quick & Easy installation
Specification:
Inputs: 1x RJ45 [1x CAT Audio & Video plus Propriety Data]
Outputs
1x 15pin Dsub [1x RGBHV / YPbPr Component / YCbCr Component]
1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
PSU:5V/1A
Dimensions:95mm [W] x 75mm [D] x 32mm [H]
Net Weight:200g
Gross Weight400g
